DD-12170.02
클릭하여 확대
DD-12170.02

DD-12170.02

Recessed Fixed

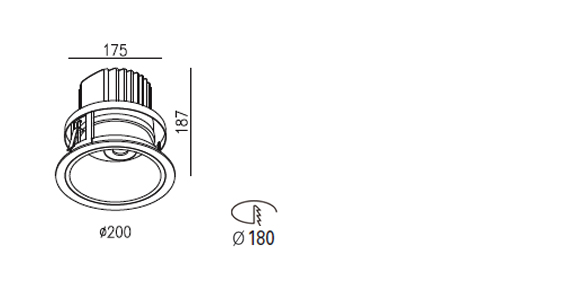

DD-12170.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : LENS / Outer : AL. Anodized
  • Dimension
    ∅ 200 x H 187 mm
  • Hole Cut
    ∅ 180 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12170.02
  • 60 W
  • 54 W
  • 36 Vdc
  • 1 590mA
  • 28.2 ˚
  • 37.3 ˚
  • 48.1 ˚
  • 55.5 ˚
  • 6 161 lm
  • 6 140 lm
  • 6 020 lm
  • 5 875 lm
 - -
