Product

DD-12180.03
클릭하여 확대
DD-12180.03

DD-12180.03

Recessed Fixed

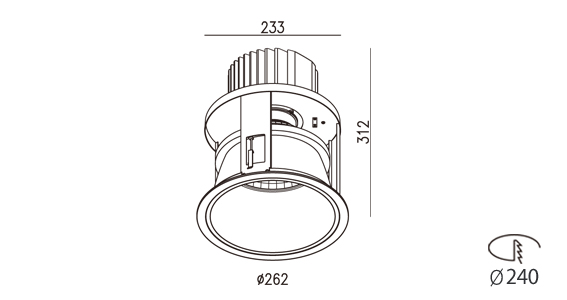

DD-12180.03 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized Specular Silver / Outer : AL. Anodized
  • Dimension
    ∅ 262 x H 312 mm
  • Hole Cut
    ∅ 240 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12180.03
  • 75 W
  • 66 W
  • 36 Vdc
  • 1 775 mA
  • 43.9 ˚
  • 5 209 lm
 - -
