Product

DD-12100.11
클릭하여 확대
DD-12100.11
클릭하여 확대
DD-12100.11
클릭하여 확대
DD-12100.11
DD-12100.11
DD-12100.11

DD-12100.11

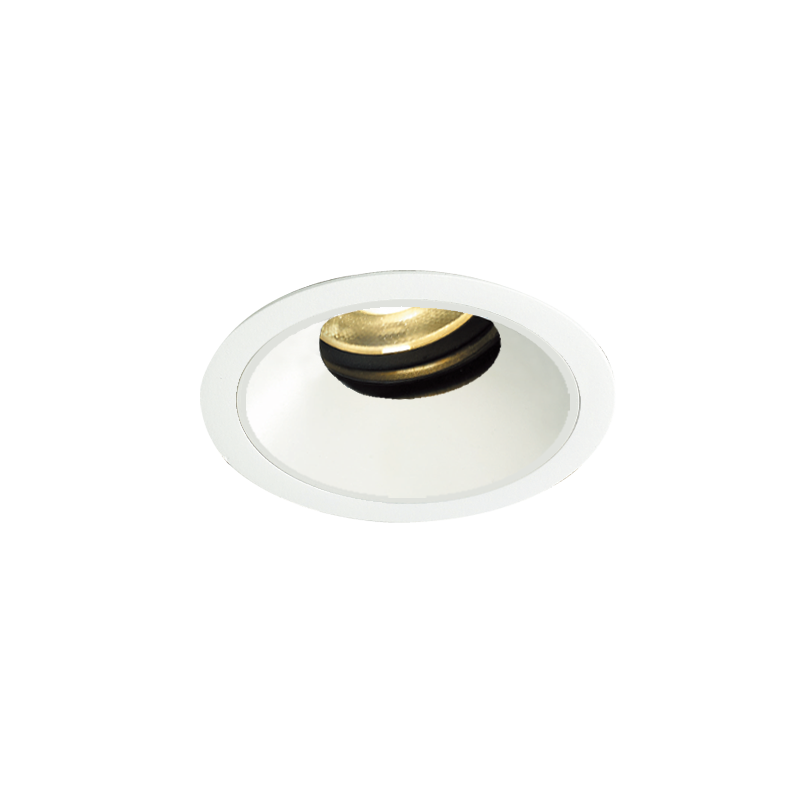

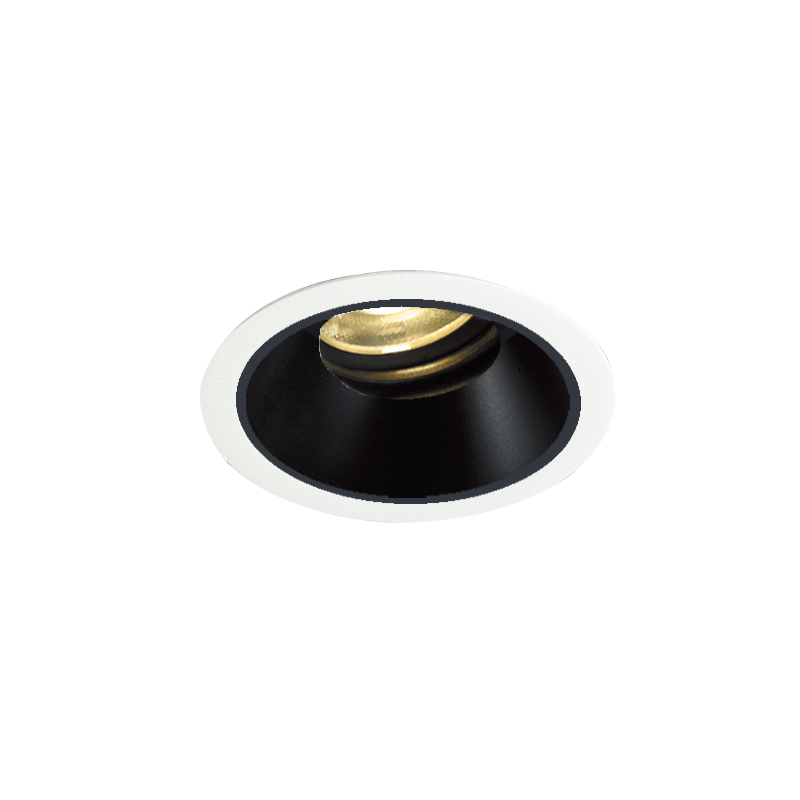

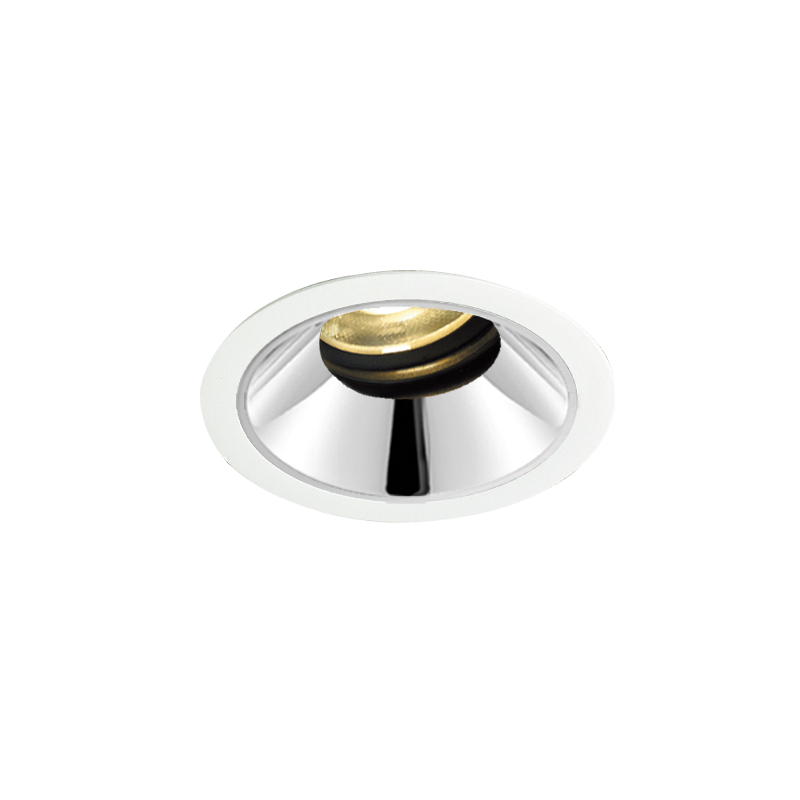

Recessed adjustable

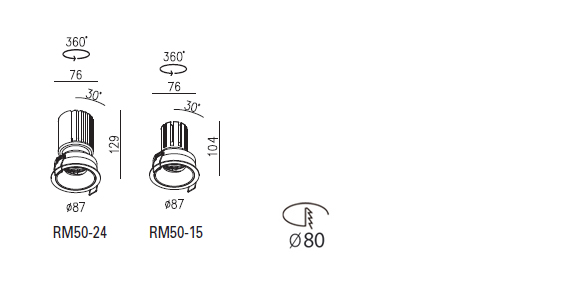

DD-12100.11 도면

PRODUCT SPECIFICATION

  • Type of LED
    RM50 (LED Lamp)
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K / 2 700 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : LENS / OUTER : ABS (Chrome)
  • Dimension
    Ø 87 mm x H (RM50-24) 129 mm / (RM50-15) 104 mm
  • Hole Cut
    Ø 80 mm

PRODUCT FEATURES



PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12100.11
  • (RM50-24)
  • 24 W
  • 35 Vdc
  • 550 mA
  • 19.7 ˚
  • 25.2 ˚
  • 33.3 ˚
  • 44.9 ˚
  • 1 731 lm
  • 2 161 lm
  • 2 202 lm
  • 2 100 lm
 - - -
  • DD-12106.11
  • (RM50-15)
  • 15 W
  • 36 Vdc
  • 32 Vdc
  • 32 Vdc
  • 32 Vdc
  • 350 mA
  • 400 mA
  • 400 mA
  • 400 mA
  • 13.6 ˚
  • 25.4 ˚
  • 37.4 ˚
  • 42.4 ˚
  • 941 lm
  • 1 392 lm
  • 1 430 lm
  • 1 330 lm
 - - -
