DDC-65100
클릭하여 확대

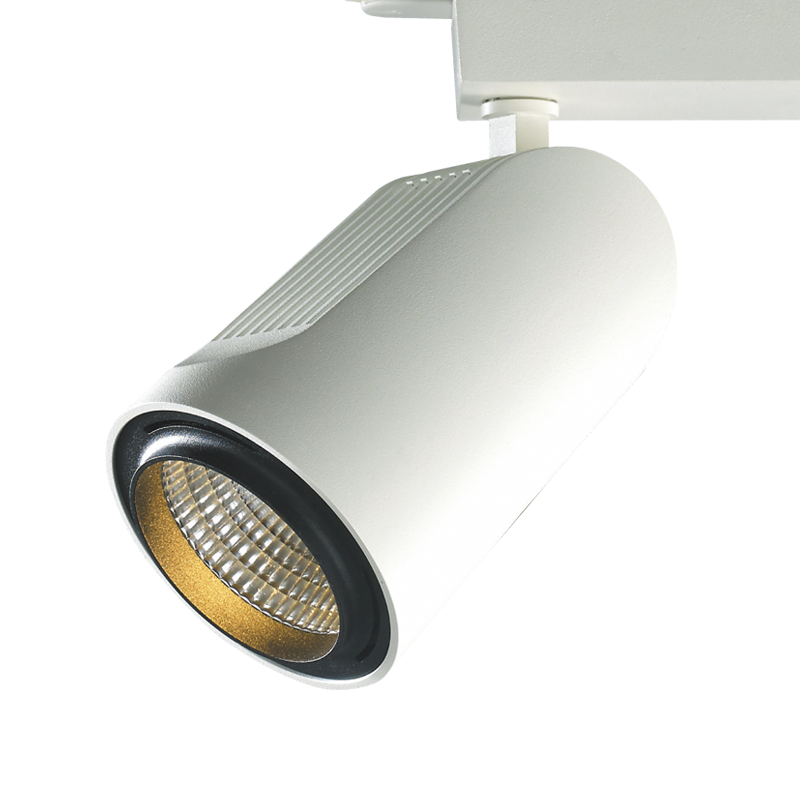

DDC-65100

DDC-65100

Track adjustable

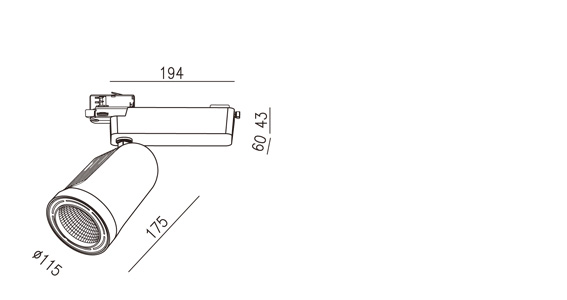

DDC-65100 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver
  • Dimension
    ∅ 115 x H 175 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65100
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 17.3 ˚
  • 24.2 ˚
  • 36.5 ˚
  • 2 058 lm
  • 2 046 lm
  • 2 035 lm
 - -
  • DDC-65101
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 17.4 ˚
  • 24.2 ˚
  • 36.4 ˚
  • 2 781 lm
  • 2 797 lm
  • 2 737 lm
 - -
  • DDC-65102
  • 43 W
  • 37 W
  • 36 Vdc
  • 1050 mA
  • 17.3 ˚
  • 24.4 ˚
  • 36.7 ˚
  • 4 095 lm
  • 4 103 lm
  • 4 017 lm
 - -
  • DDC-65103
  • 48 W
  • 43 W
  • 36 Vdc
  • 1200 mA
  • 17.3 ˚
  • 24.6 ˚
  • 36.8 ˚
  • 4 525 lm
  • 4 506 lm
  • 4 400 lm
 - -
