Product

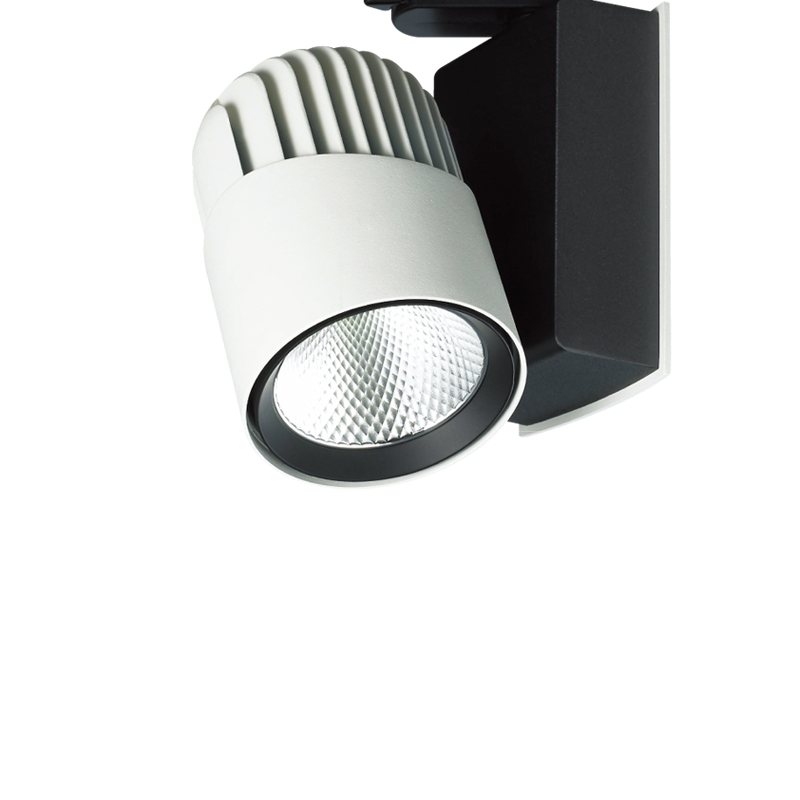

DDC-65060.01
클릭하여 확대
DDC-65060.01
클릭하여 확대
DDC-65060.01
클릭하여 확대
DDC-65060.01
DDC-65060.01
DDC-65060.01

DDC-65060.01

Track adjustable

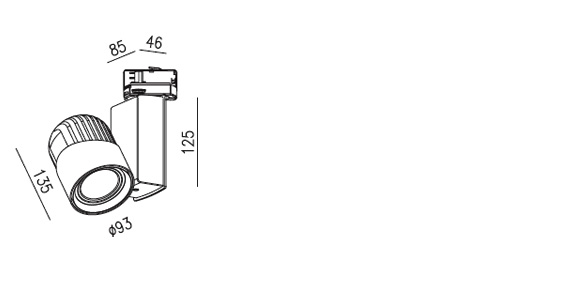

DDC-65060.01 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver or LENS
  • Dimension
    ∅ 93 x H 135 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION

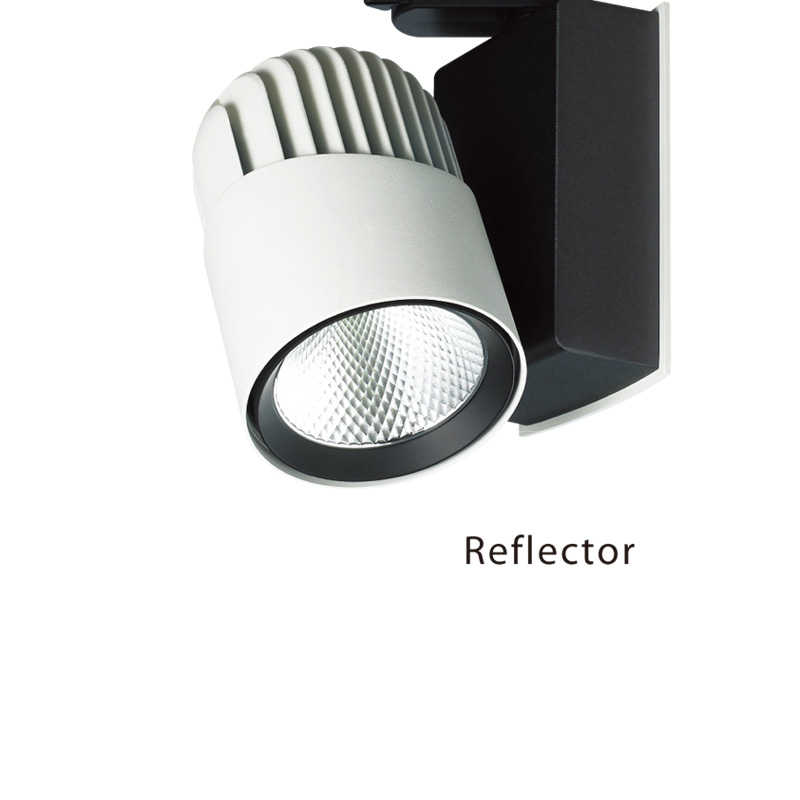

  • DDC-65060.01 (Reflector)
  • 33W
  • 28 W
  • 36 Vdc
  • 800 mA
  • 15.7 ˚
  • 23.1 ˚
  • 37.6 ˚
  • 48.4˚
  • 69.8 ˚
  • 3 362 lm
  • 3 345 lm
  • 3 329 lm
  • 3 338 lm
  • 3 422 lm
 - -
  • DDC-65061.01 (Reflector)
  • 42 W
  • 38 W
  • 36 Vdc
  • 1 050 mA
  • 15.7 ˚
  • 23.3 ˚
  • 37.6 ˚
  • 48.4˚
  • 69.9 ˚
  • 4 094 lm
  • 4 084 lm
  • 4 096 lm
  • 4 117 lm
  • 4 099 lm
 - -

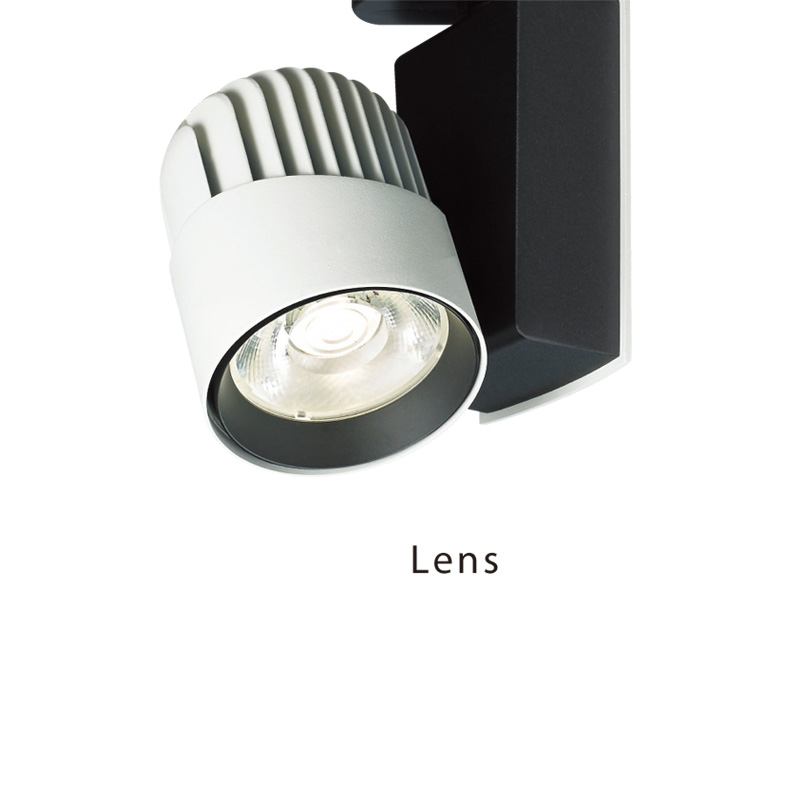

  • DDC-65060.01 (LENS)
  • 33W
  • 28 W
  • 36 Vdc
  • 800 mA
  • 18.9 ˚
  • 28.5 ˚
  • 43.9 ˚
  • 59.3 ˚
  • 3 139 lm
  • 3 283 lm
  • 3 152 lm
  • 2 850 lm
 - -
  • DDC-65061.01 (LENS)
  • 42 W
  • 38 W
  • 36 Vdc
  • 1 050 mA
  • 18.9 ˚
  • 28.5 ˚
  • 44.2 ˚
  • 59.4 ˚
  • 3 902 lm
  • 4 055 lm
  • 3 920 lm
  • 3 471 lm
 - -
