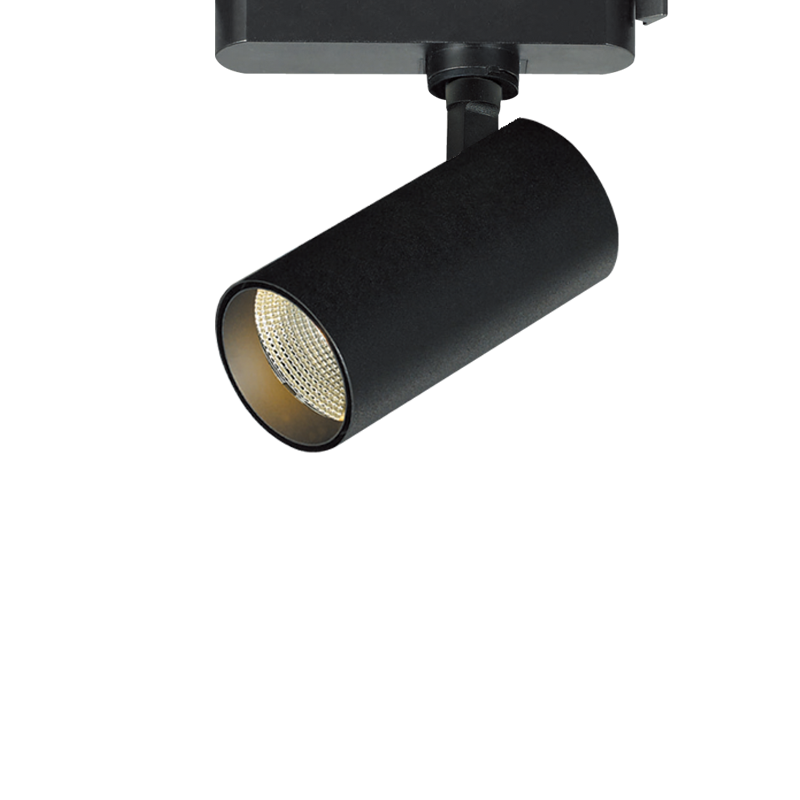

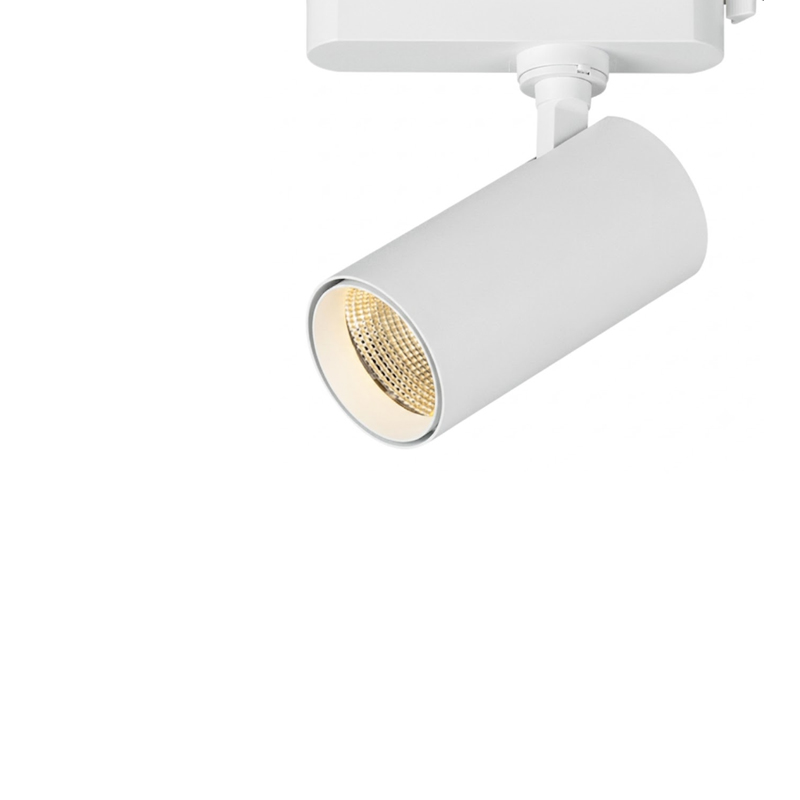

DDC-65020.07
클릭하여 확대
DDC-65020.07
클릭하여 확대
DDC-65020.07
DDC-65020.07

DDC-65020.07

Track adjustable

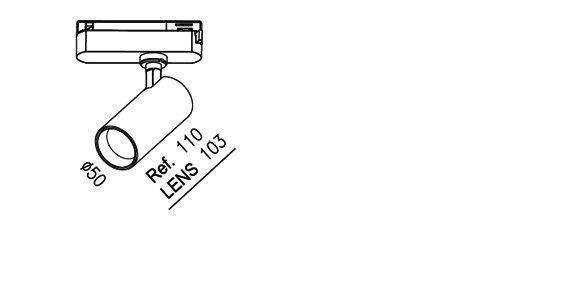

DDC-65020.07 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC (Vacuum Coating) or LENS
  • Dimension
    ∅ 50 x L 110 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION

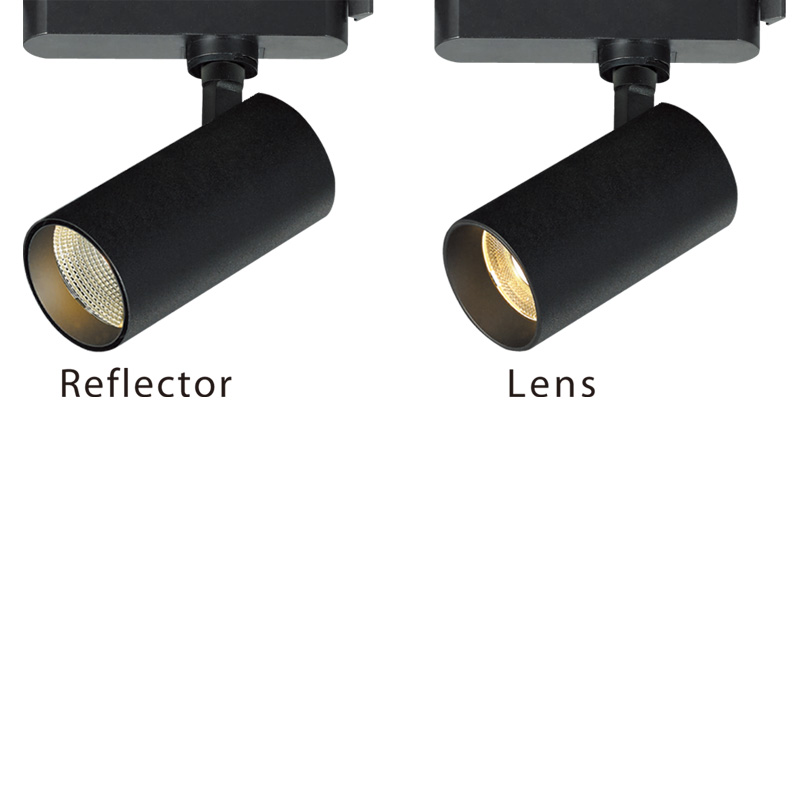

  • DDC-65020.07
  • (Reflector)
  • 14 W
  • 11 W
  • 32 Vdc
  • 350 mA
  • 20.5 ˚
  • 27.3 ˚
  • 37.6 ˚
  • 1 072 lm
  • 1 160 lm
  • 1 137 lm
 - -
  • DDC-65020.07
  • (LENS)
  • 14 W
  • 11 W
  • 32 Vdc
  • 350 mA
  • 18.6 ˚
  • 23.2 ˚
  • 34.2 ˚
  • 40.0 ˚
  • 1 043 lm
  • 1 211 lm
  • 1 229 lm
  • 1 182 lm
 - -
