Product

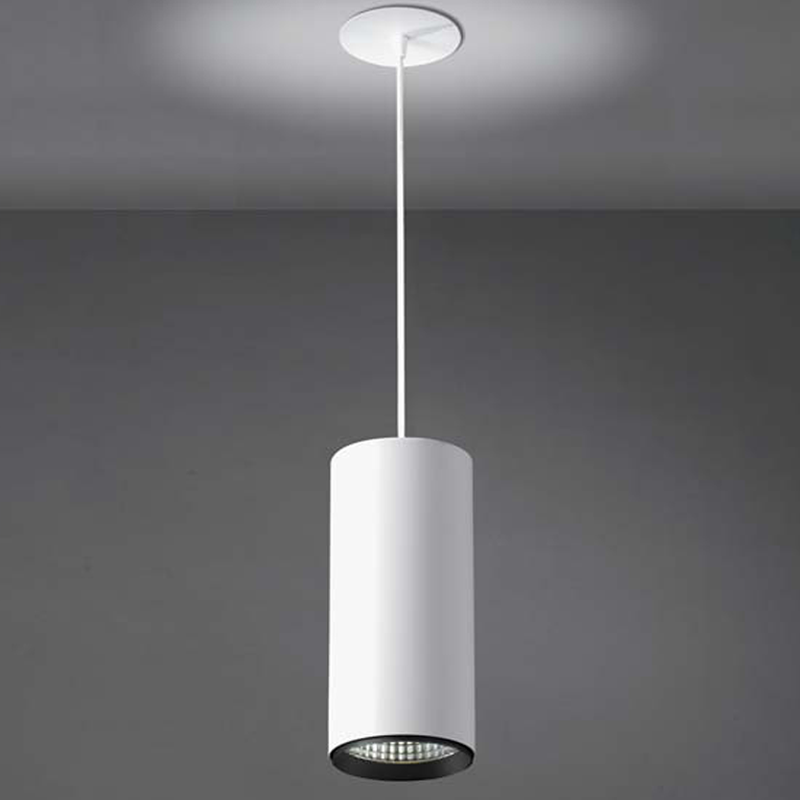

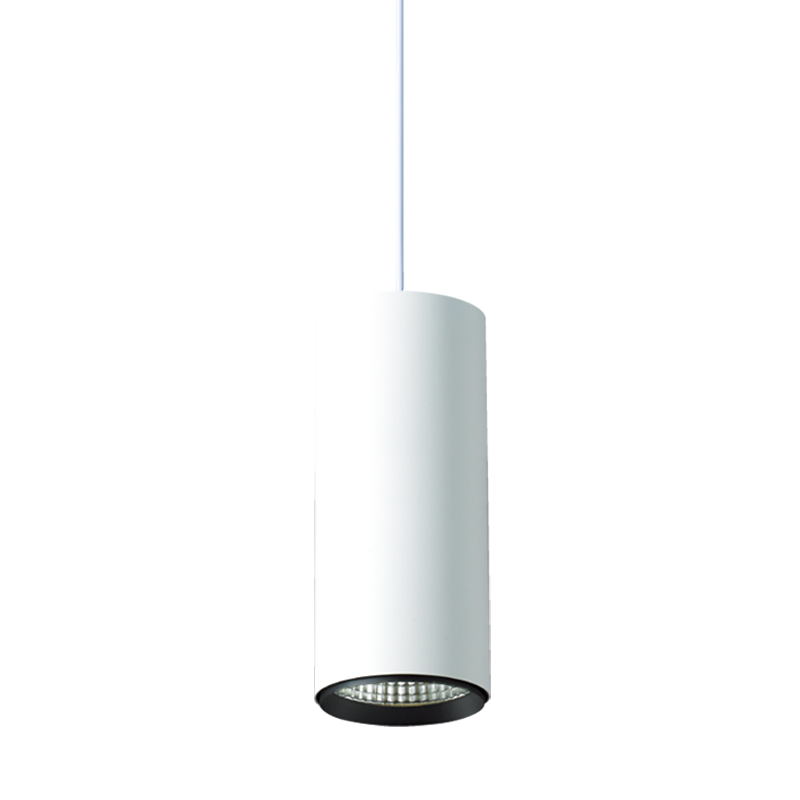

DP-51200.02
클릭하여 확대
DP-51200.02
클릭하여 확대
DP-51200.02
DP-51200.02

DP-51200.02

Pendant Fixed

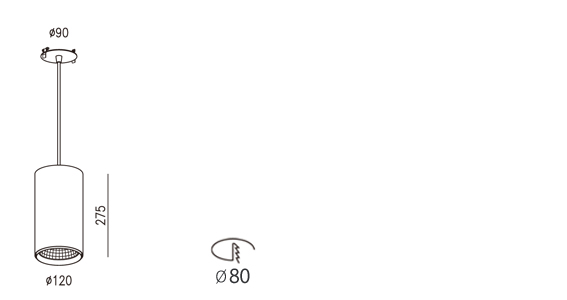

DP-51200.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    Up-Lighting : SMD / Down-Lighting : COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    COB ( 4 000 K / 3 000 K ) / SMD ( 5 000 K / 4 000 K / 3 000 K )
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Up-Lighting : Acryl / Down-Lighting : AL. Anodized Specular Silver
  • Dimension
    ∅ 120 x H 275 mm
  • Hole Cut
    ∅ 80 mm

PRODUCT FEATURES

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DP-51200.02
  • (Up lighting)
  • SMD
  • 15 W
  • 13 W
  • 36 Vdc
  • 350 mA
  • 109.3 ˚
  • 1 051 lm
 - -
  • (Down Lighting)
  • COB
  • 20 W
  • 17 W
  • 34 Vdc
  • 500 mA
  • 38.6 ˚
  • 2 000 lm
 - - -
