Product

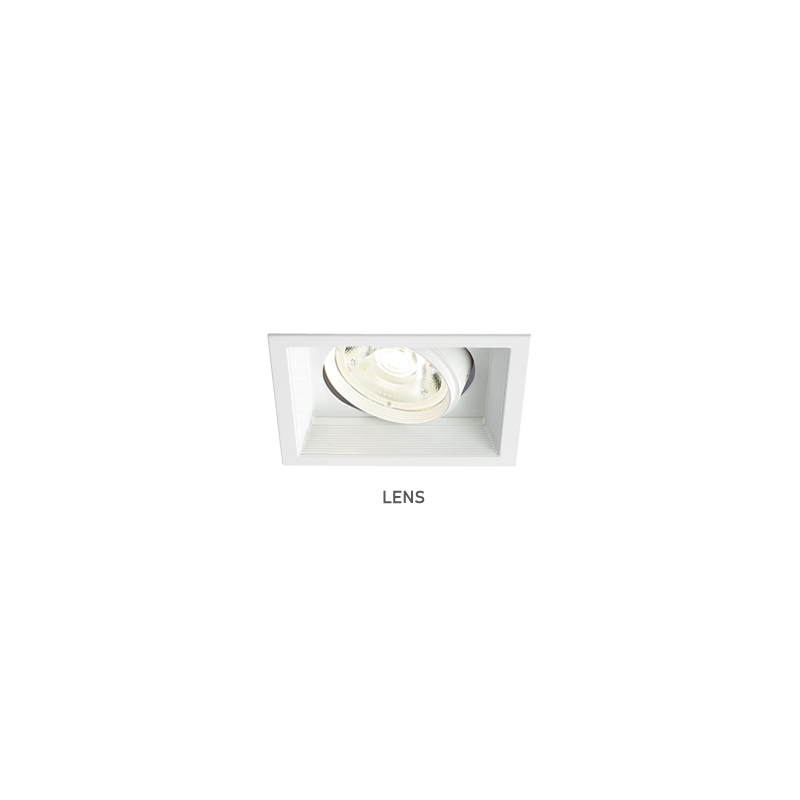

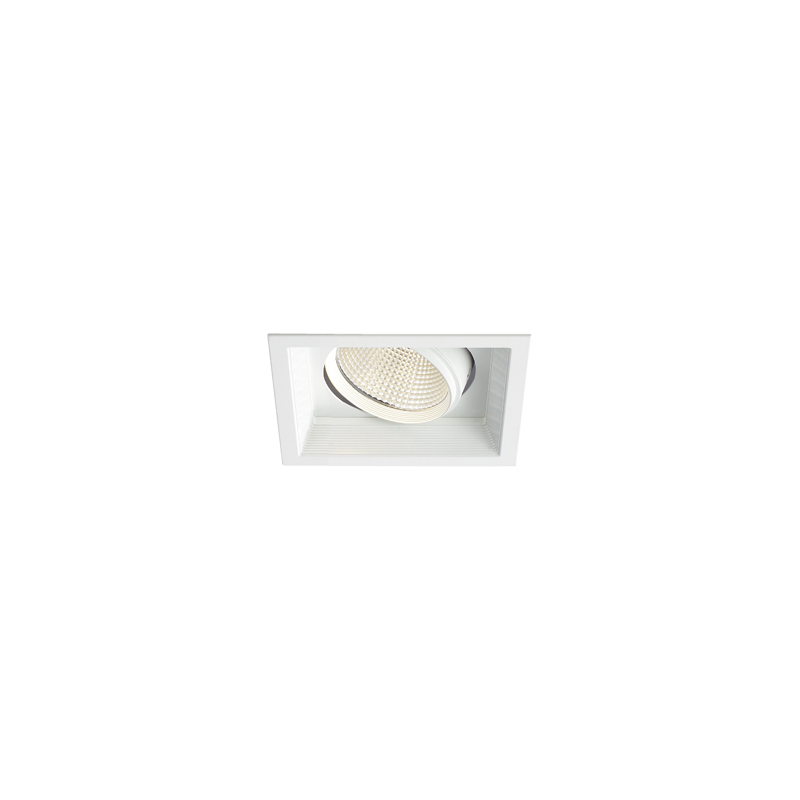

DD-37010.06
클릭하여 확대
DD-37010.06
클릭하여 확대
DD-37010.06
DD-37010.06

DD-37010.06

Recessed adjustable

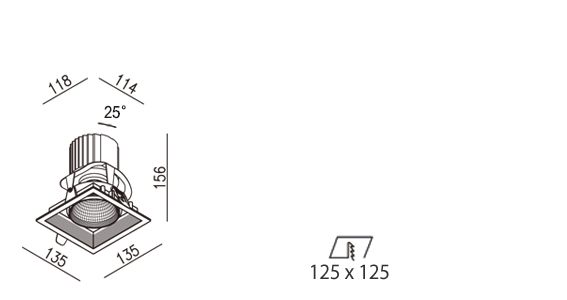

DD-37010.06 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver or LENS
  • Dimension
    135 x 135 x H 156 mm
  • Hole Cut
    125 x 125 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-37010.06 (Reflector type)
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 17.3 ˚
  • 24.2 ˚
  • 36.5 ˚
  • 2 058 lm
  • 2 046 lm
  • 2 035 lm
 - -
  • DD-37011.06 (Reflector type)
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 17.4 ˚
  • 24.2 ˚
  • 36.4 ˚
  • 2 781 lm
  • 2 797 lm
  • 2 737 lm
 - -
  • DD-37010.06 (LENS type)
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 19.2 ˚
  • 29.0 ˚
  • 42.5 ˚
  • 60.6 ˚
  • 2 057 lm
  • 2 122 lm
  • 2 066 lm
  • 1 925 lm
 - -
  • DD-37011.06 (LENS type)
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 19.2 ˚
  • 29.0 ˚
  • 42.8 ˚
  • 60.6 ˚
  • 2 762 lm
  • 2 886 lm
  • 2 805 lm
  • 2 580 lm
 - -
