DD-12030.06
클릭하여 확대

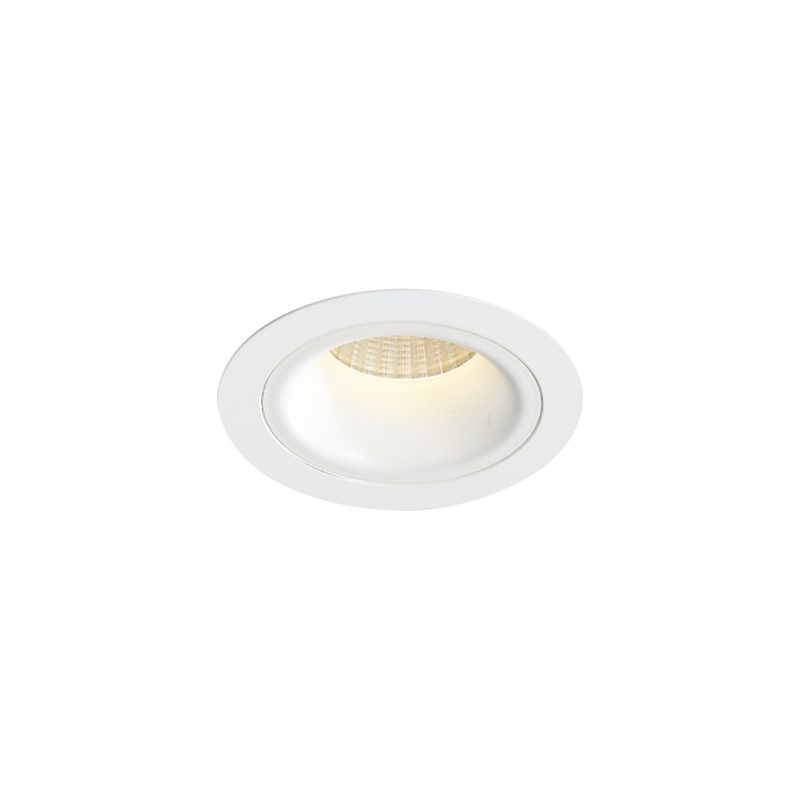

DD-12030.06

DD-12030.06

Recessed adjustable

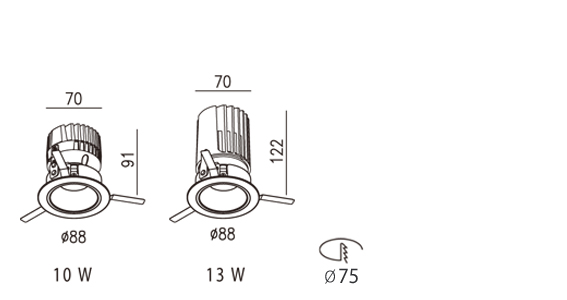

DD-12030.06 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC (Vacuum Coating)
  • Dimension
    ∅ 88 x H (10W) 91 mm / (13W) 122 mm
  • Hole Cut
    ∅ 75 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12030.06
  • 10 W
  • 8 W
  • 32 Vdc
  • 250 mA
  • 18.7 ˚
  • 23.5 ˚
  • 33.1 ˚
  • 793 lm
  • 815 lm
  • 894 lm
 - - -
  • DD-12030.06
  • 13W
  • 11W
  • 32 Vdc
  • 350 mA
  • 18.7 ˚
  • 23.5 ˚
  • 33.1 ˚
  • 1 094 lm
  • 1 102 lm
  • 1 223 lm
 - - -
