Product

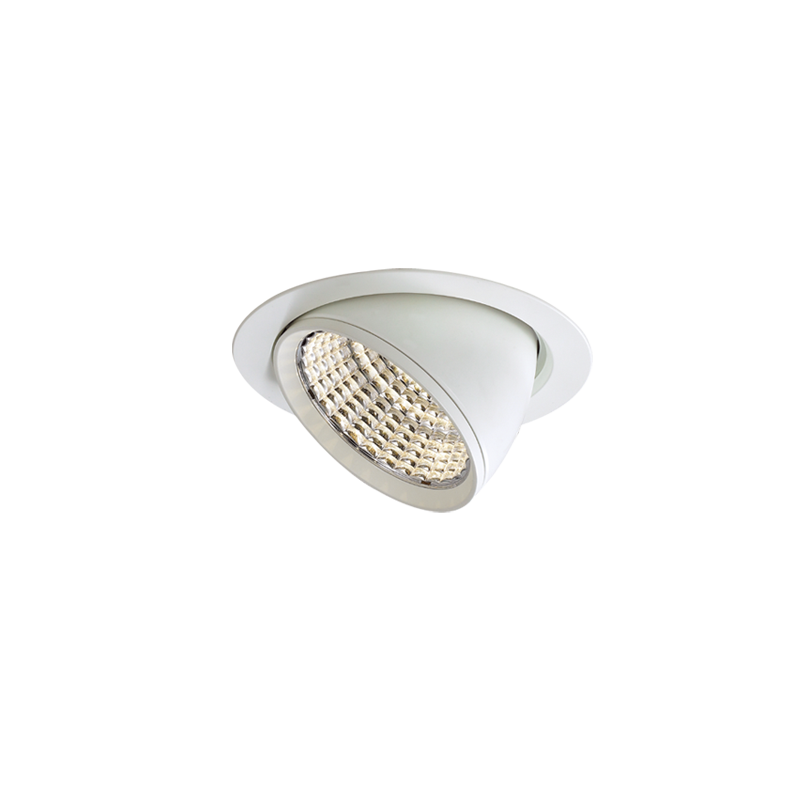

DDS-27500
클릭하여 확대
DDS-27500

DDS-27500

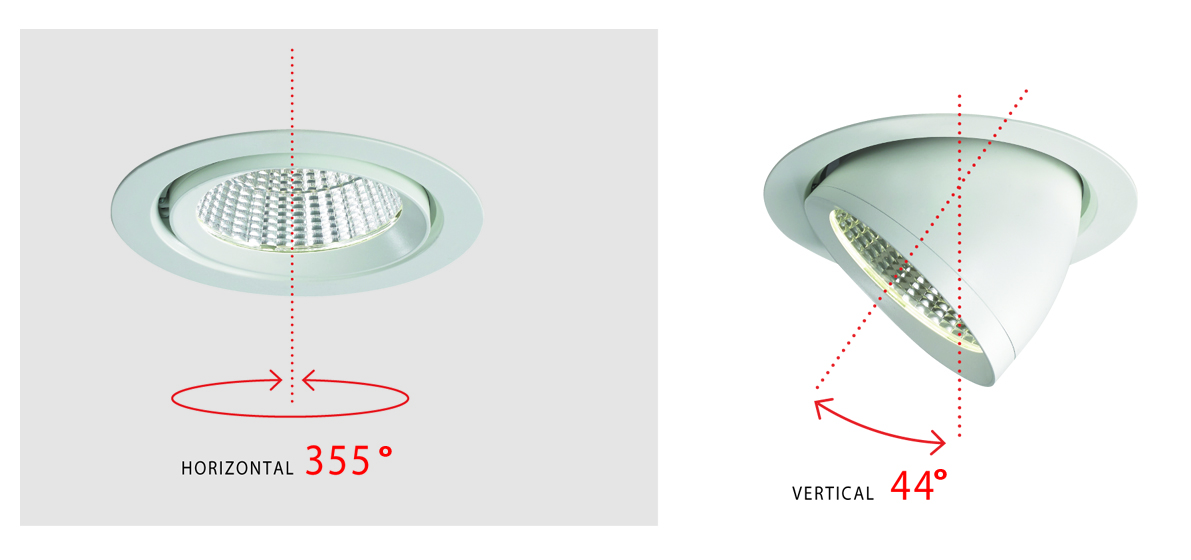

Recessed adjustable

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver
  • Dimension
    ∅ 175 x H 145 mm
  • Hole Cut
    ∅ 165 mm

PRODUCT FEATURES


PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDS-27500
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 19.3 ˚
  • 39.0 ˚
  • 58.8 ˚
  • 1 998 lm
  • 1 922 lm
  • 1 930 lm
 - -
  • DDS-27501
  • 28 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 19.3 ˚
  • 39.0 ˚
  • 58.8 ˚
  • 2 697 lm
  • 2 603 lm
  • 2 616 lm
 - -
