Product

DD-26510.02
클릭하여 확대

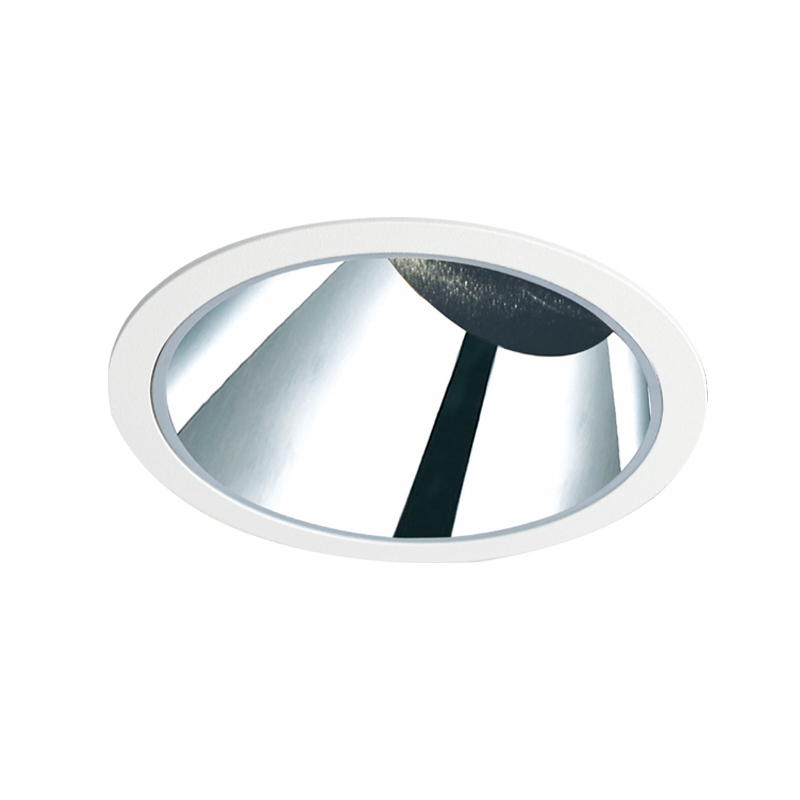

DD-26510.02

DD-26510.02

Recessed adjustable

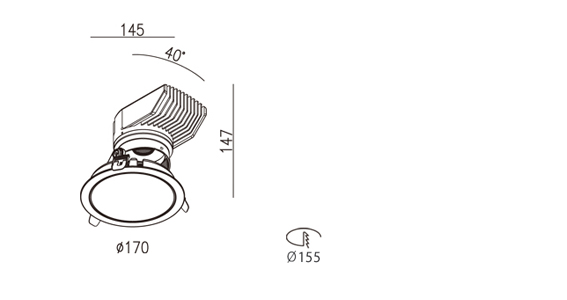

DD-26510.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : LENS / Outer : ABS (Chrome)
  • Dimension
    ∅ 170 x H 147 mm
  • Hole Cut
    ∅ 155 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26510.02
  • 37 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 18.9 ˚/ 38.0 ˚
  • 29.5 ˚/ 33.3 ˚
  • 40.3 ˚/ 39.7 ˚
  • 55.0 ˚/ 47.2 ˚
  • 3 911 lm
  • 4 330 lm
  • 4 094 lm
  • 2 955 lm
 - -
