Product

DD-26530.04
클릭하여 확대

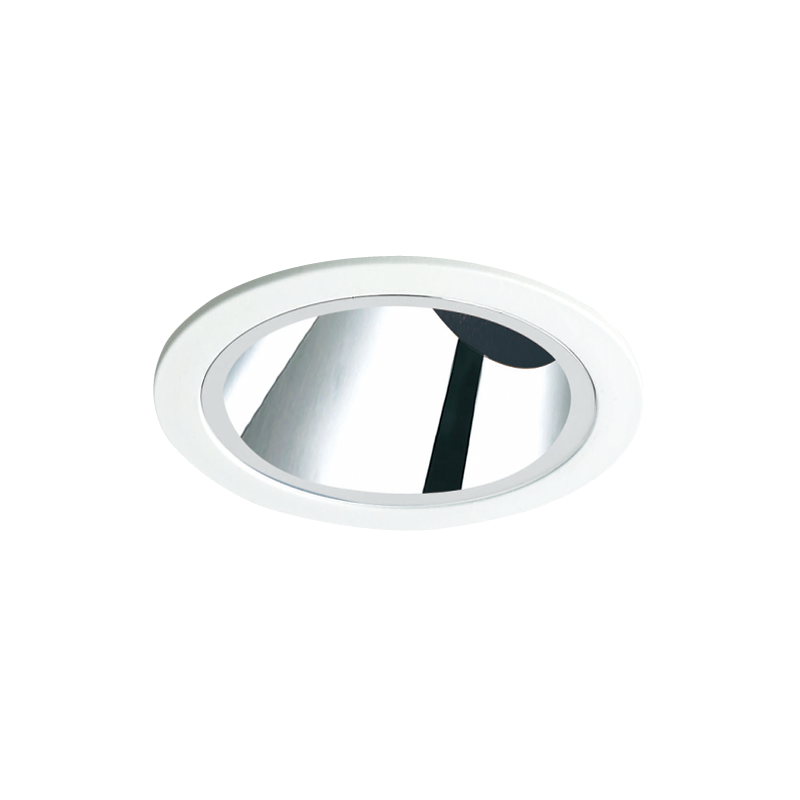

DD-26530.04

DD-26530.04

Recessed adjustable

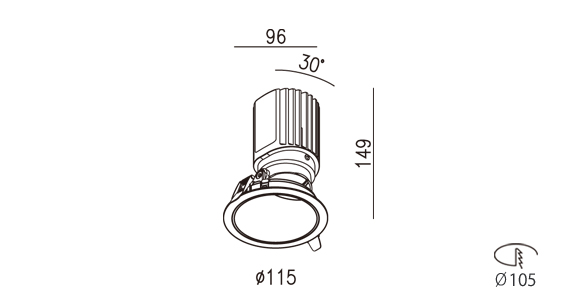

DD-26530.04 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized / Outer : ABS (Chrome)
  • Accessory
  • Dimension
    ∅ 115 x H 149 mm
  • Hole Cut
    ∅ 105 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26530.04
  • 26 W
  • 22 W
  • 36 Vdc
  • 600 mA
  • 15.0 ˚ / 15.2 ˚
  • 25.6 ˚ / 25.7 ˚
  • 37.0 ˚ / 36.9 ˚
  • 2 121 lm
  • 1 795 lm
  • 2 175 lm
 - -
