DD-12100.07-02
클릭하여 확대

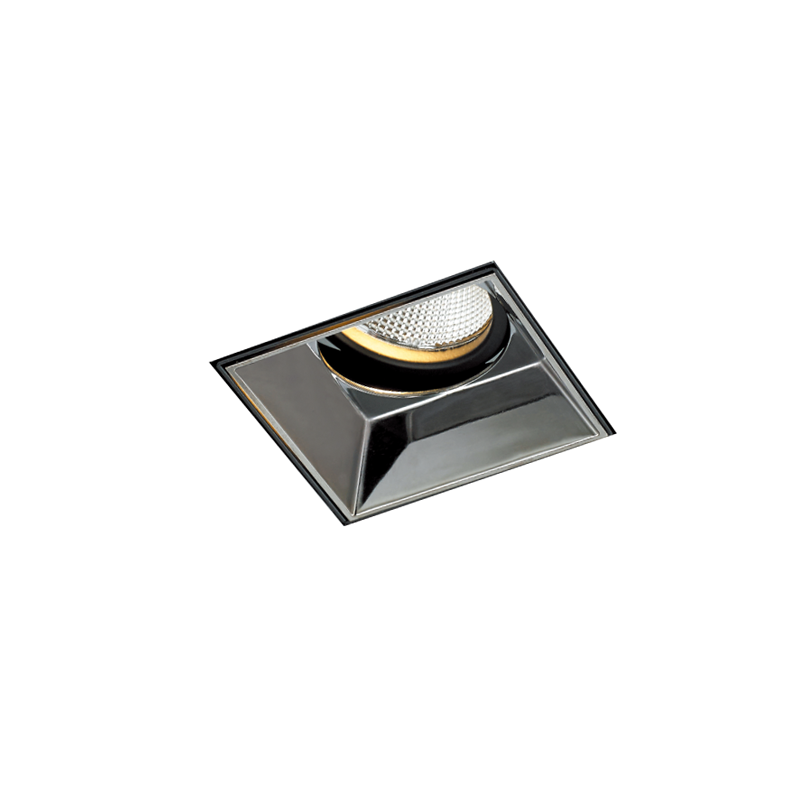

DD-12100.07-02

DD-12100.07-02

Recessed adjustable

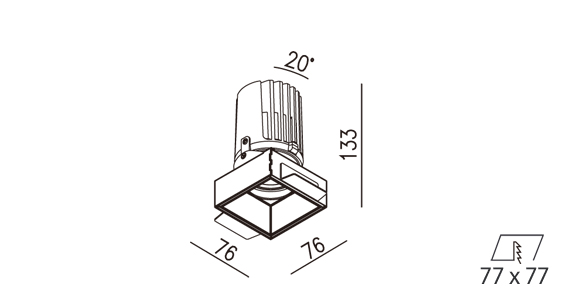

DD-12100.07-02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : PC / OUTER : ABS (Chrome)
  • Dimension
    76 x 76 x H 133 mm
  • Hole Cut
    77 x 77 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12100.07-02
  • 15 W
  • 12 W
  • 32 Vdc
  • 350 mA
  • 16.3 ˚
  • 24.4 ˚
  • 37.0 ˚
  • 1 155 lm
  • 1 147 lm
  • 1 337 lm
 - -
