Product

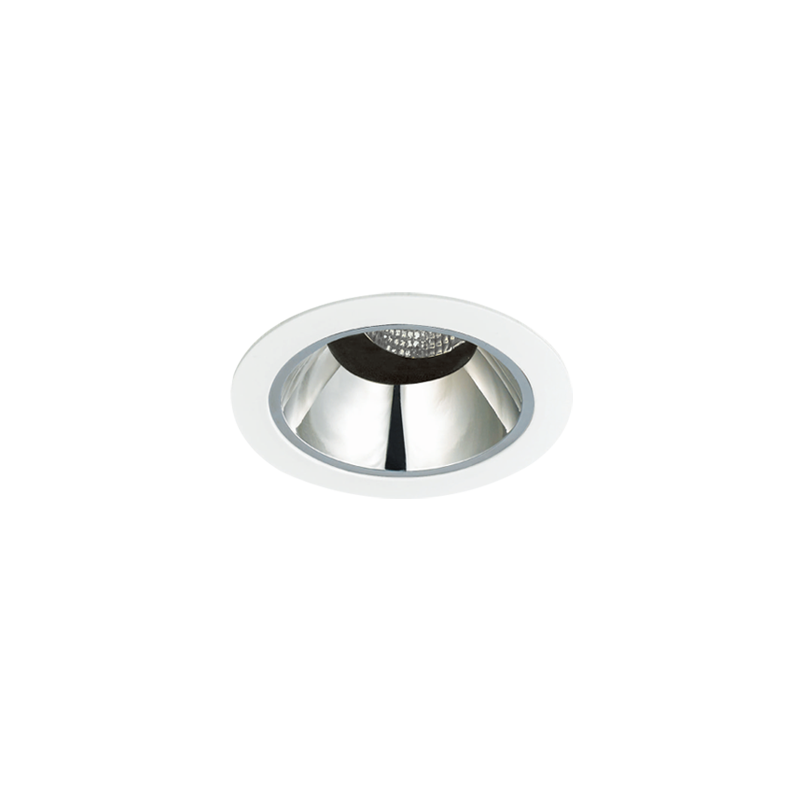

DD-12090.07
클릭하여 확대
DD-12090.07

DD-12090.07

Recessed adjustable

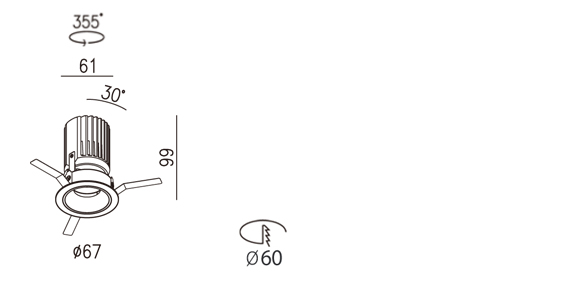

DD-12090.07 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : PC / OUTER : ABS (Chrome)
  • Dimension
    ∅ 67 x H 99 mm
  • Hole Cut
    ∅ 60 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-12090.07
  • 10 W
  •
  • 8 W
  • 32 Vdc
  •
  • 250 mA
  • 22.7 ˚
  • 29.4 ˚
  • 813 lm
  • 718 lm
 - -
  • DD-12090.07
  • 13 W
  • 11 W
  •
  • 32 Vdc
  •
  • 350 mA
  • 22.7 ˚
  • 29.5 ˚
  • 1 113 lm
  • 975 lm
 - -
