Recessed Fixed

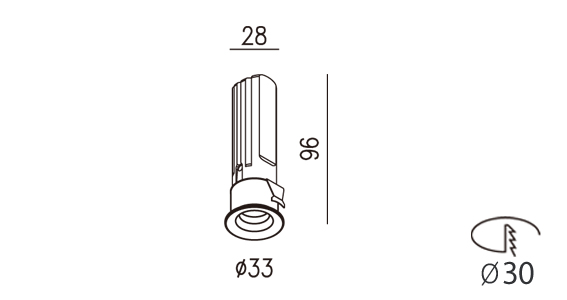

DD-11000.05 도면

PRODUCT SPECIFICATION

  • Type of LED
    POWER LED
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    ABS
  • Finished
    White, Black, Chrome, Dark Chrome
  • Reflector
    LENS
  • Dimension
    ∅ 33 x H 96 mm
  • Hole Cut
    ∅ 30 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-11000.05
  • 5 W
  • 3 W
  • 12 Vdc
  • 300 mA
  • 16.7 ˚
  • 21.2 ˚
  • 32.9 ˚
  • 45.7 ˚
  • 278 lm
  • 193 lm
  • 225 lm
  • 276 lm
 - -
