Recessed Fixed

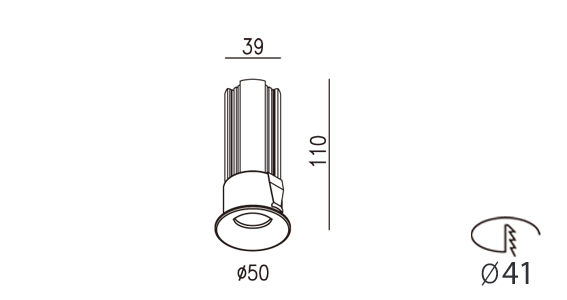

DD-11020.05 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    ABS
  • Finished
    White, Black, Chrome, Dark Chrome
  • Reflector
    LENS
  • Dimension
    ∅ 50 x H 110 mm
  • Hole Cut
    ∅41 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-11020.05
  • 7 W
  • 5 W
  • 36 Vdc
  • 150 mA
  • 22.4 ˚
  • 28.7 ˚
  • 40.3 ˚
  • 53.8 ˚
  • 499 lm
  • 497 lm
  • 516 lm
  • 513 lm
 - -
  • DD-11020.05
  • 10 W
  • 8 W
  • 36 Vdc
  • 220 mA
  • 22.4 ˚
  • 28.7 ˚
  • 40.3 ˚
  • 53.8 ˚
  • 696 lm
  • 696 lm
  • 724 lm
  • 716 lm
 - -
