Product

RM50-24
클릭하여 확대

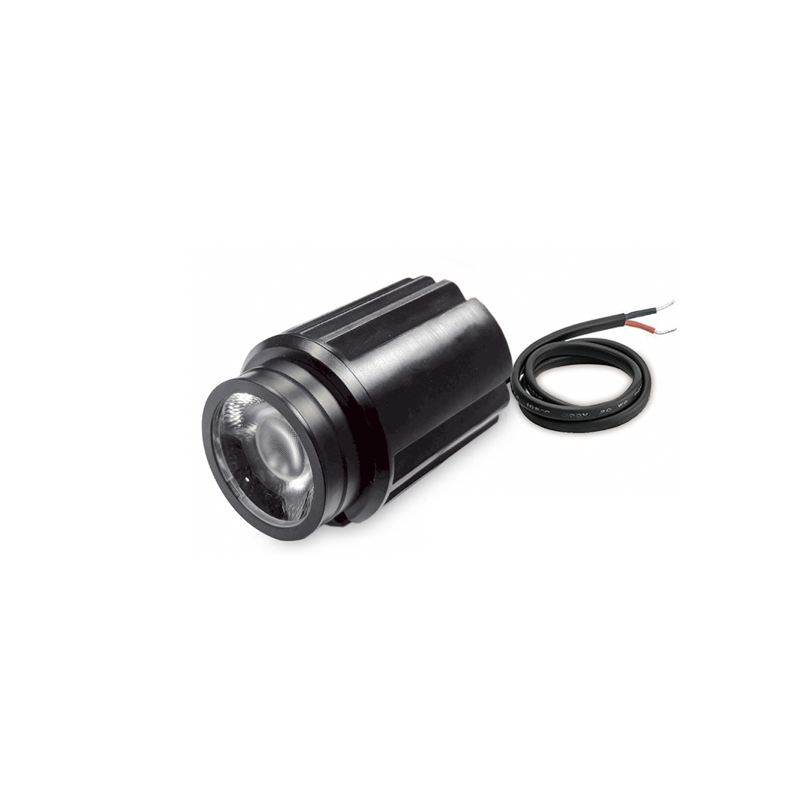

RM50-24

RM50-24

LED Lamp 24 W

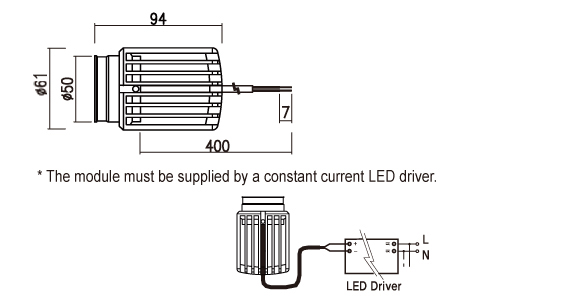

RM50-24 도면

PRODUCT SPECIFICATION

  • Type of LED
    RM50-24 (LED Lamp)
  • Input Voltage
    220-240 Vac , 50/60 Hz
  • CRI
    90
  • Color Temperature
    4 000 K / 3 000 K / 2700K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    Black
  • Dimension
    ∅ 50 x H 94 mm

PRODUCT FEATURES



PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • RM50-24
  • (LED Lamp)
  • 24 W
  • 36 Vdc
  • 550 mA
  • 19 ˚
  • 24 ˚
  • 31 ˚
  • 41 ˚
  • 1 837 lm
  • 2 212 lm
  • 2 226 lm
  • 2 105 lm
 - -
