DDC-65260.22
클릭하여 확대

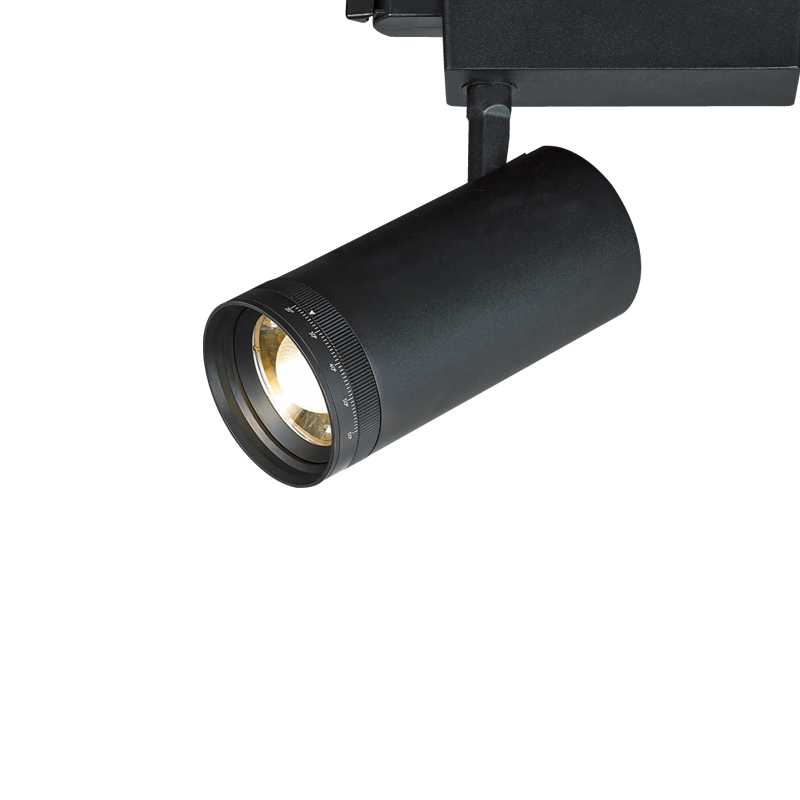

DDC-65260.22

DDC-65260.22

Track adjustable

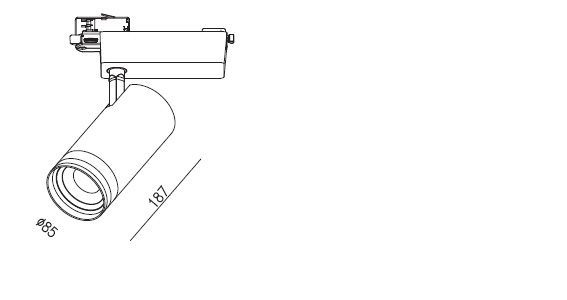

DDC-65260.22 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Accessory
    Zoom in-out Lens / Wall Washer Lens / Honeycomb Louver
  • Dimension
    ∅ 85 Body

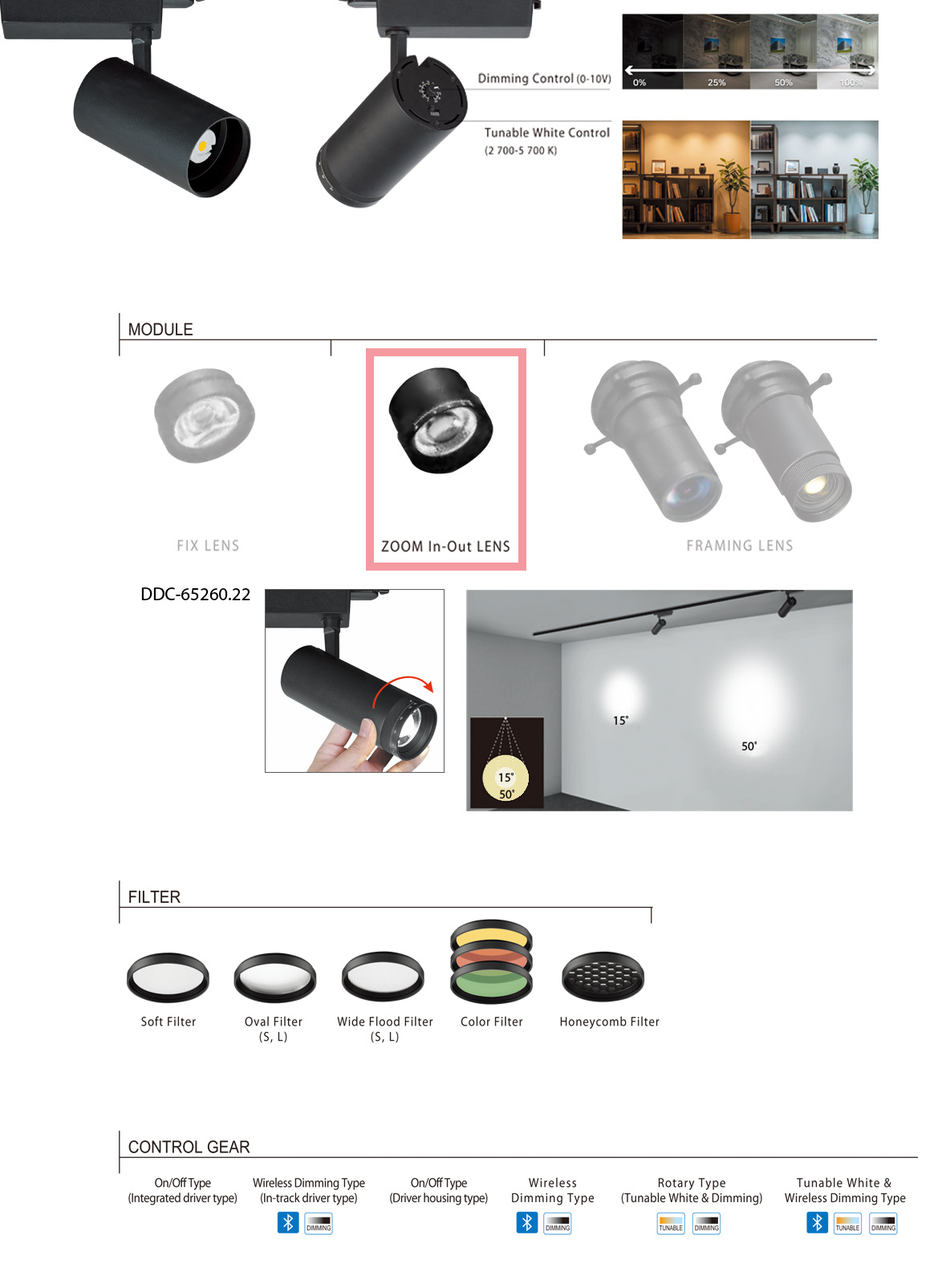

PRODUCT FEATURES





PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65260.22
  • 32 W
  • 29 W
  • 36 Vdc
  • 800 mA
  • 14.5 ˚ (In)
  • 50.4 ˚ (Out)
  • 2 013 lm
  • 2 510 lm
 - -
  • DDC-65261.22
  • 43 W
  • 39 W
  • 36 Vdc
  • 1 050 mA
  • 14.5 ˚ (In)
  • 53.4 ˚ (Out)
  • 2 506 lm
  • 3 195 lm
 - -
