Product

DDC-65070.02
클릭하여 확대
DDC-65070.02
클릭하여 확대
DDC-65070.02
클릭하여 확대
DDC-65070.02
DDC-65070.02
DDC-65070.02

DDC-65070.02

Track adjustable

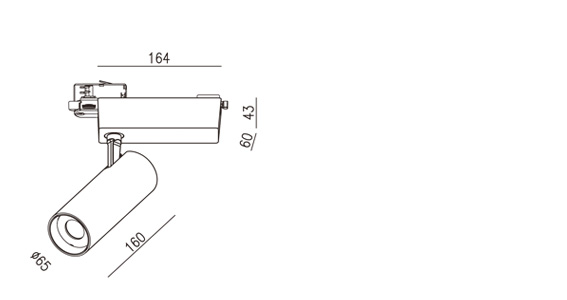

DDC-65070.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Silver or LENS
  • Dimension
    ∅ 65 x H 160 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65070.02

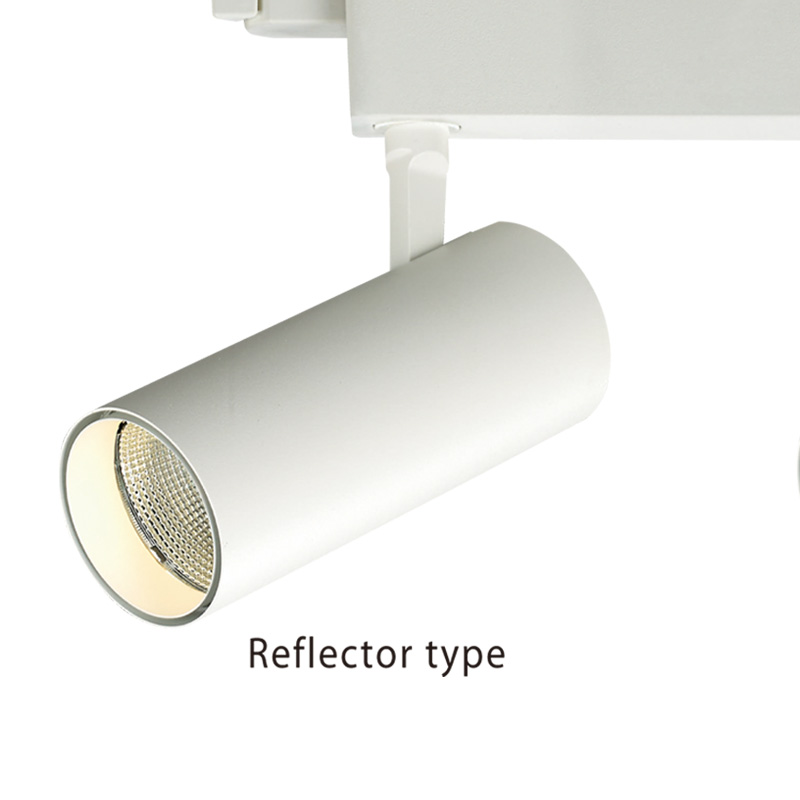

  • (Reflector )
  • 32 W
  • 28 W
  • 36 Vdc
  • 800 mA
  • 31.1 ˚
  • 40.7 ˚
  • 3 029 lm
  • 3 048 lm
 - -

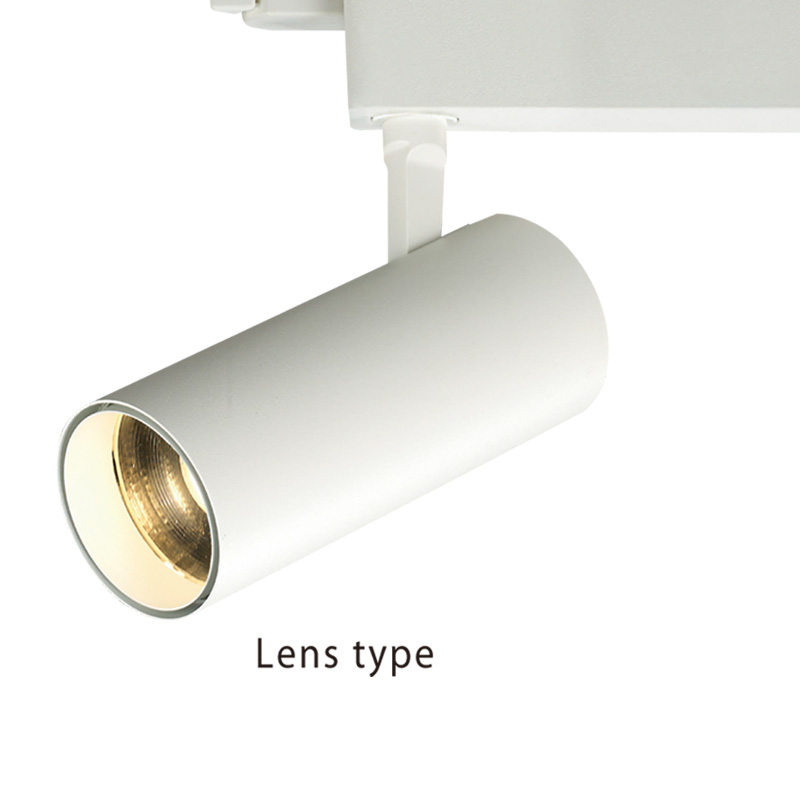

  • DDC-65070.02 ( LENS )
  • 32 W
  • 28 W
  • 36 Vdc
  • 800 mA
  • 19.9 ˚_
  • 28.6 ˚
  • 39.0 ˚
  • 51.9 ˚
  • 2 451 lm
  • 3 086 lm
  • 3 171 lm
  • 2 968 lm
 - -
