DDC-65070.04
클릭하여 확대

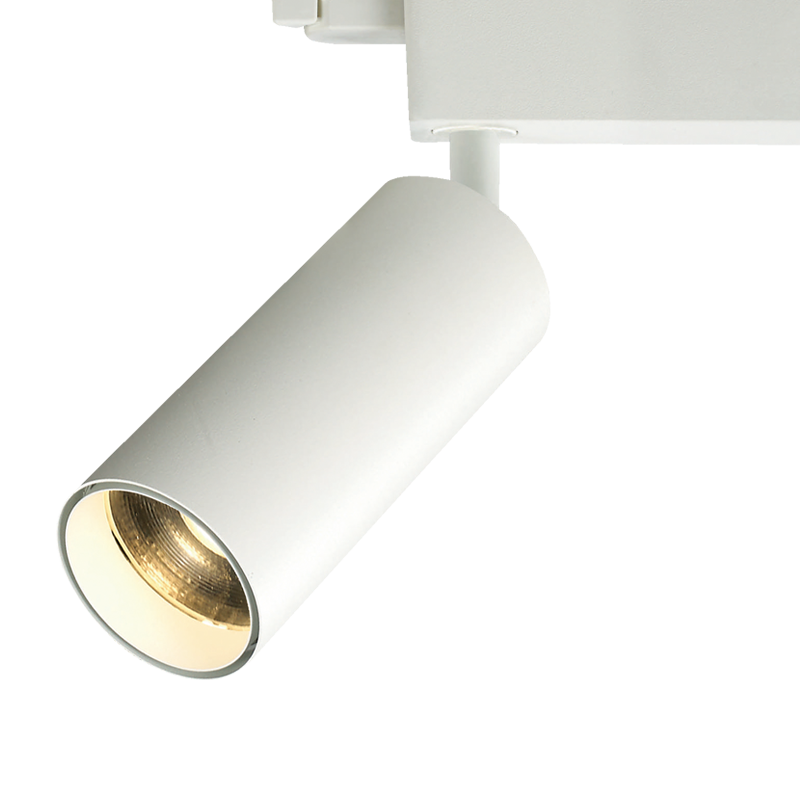

DDC-65070.04

DDC-65070.04

Track adjustable

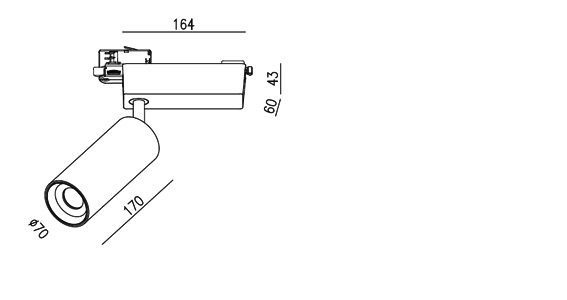

DDC-65070.04 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    LENS
  • Dimension
    ∅ 70 x H 160 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65070.04
  • 38 W
  • 34 W
  • 36 Vdc
  • 950 mA
  • 20.5 ˚_
  • 28.6 ˚
  • 38.8 ˚
  • 51.8 ˚
  • 3 228 lm
  • 3 619 lm
  • 3 727 lm
  • 3 452 lm
 - -
