DDC-65030.22
클릭하여 확대
DDC-65030.22
클릭하여 확대
DDC-65030.22
DDC-65030.22

DDC-65030.22

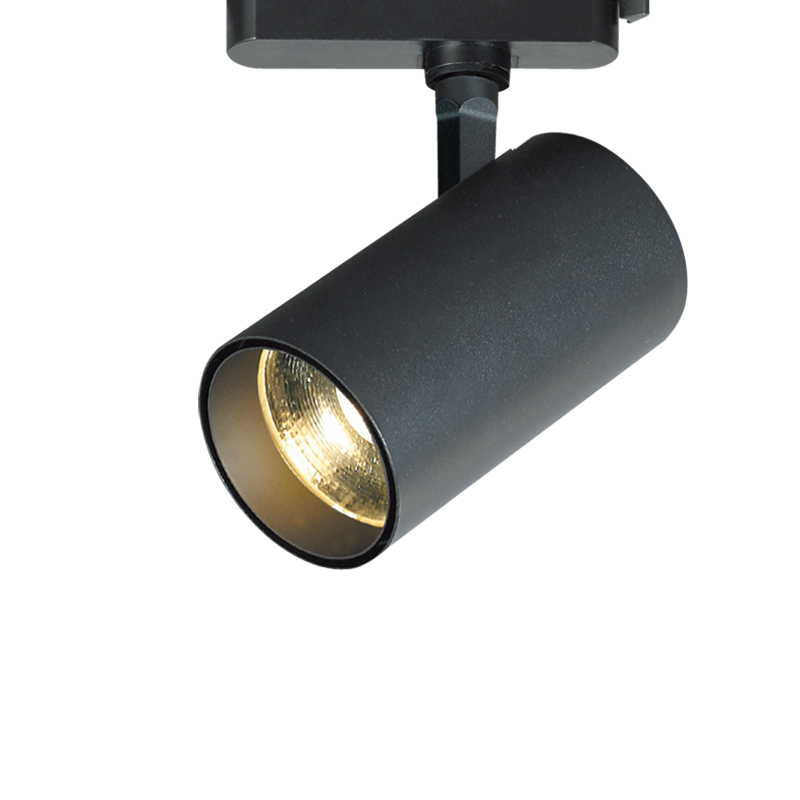

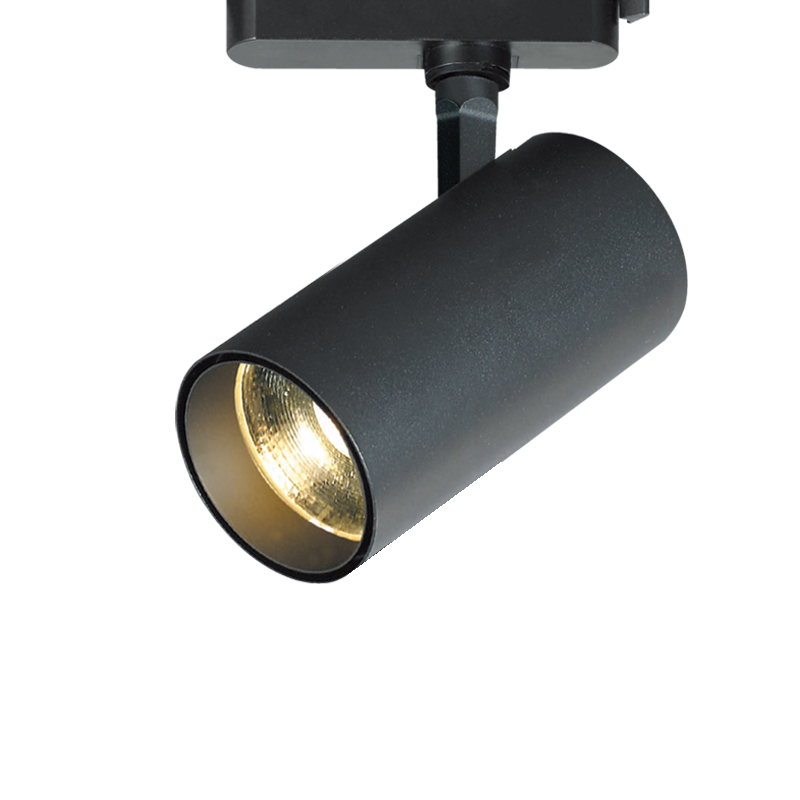

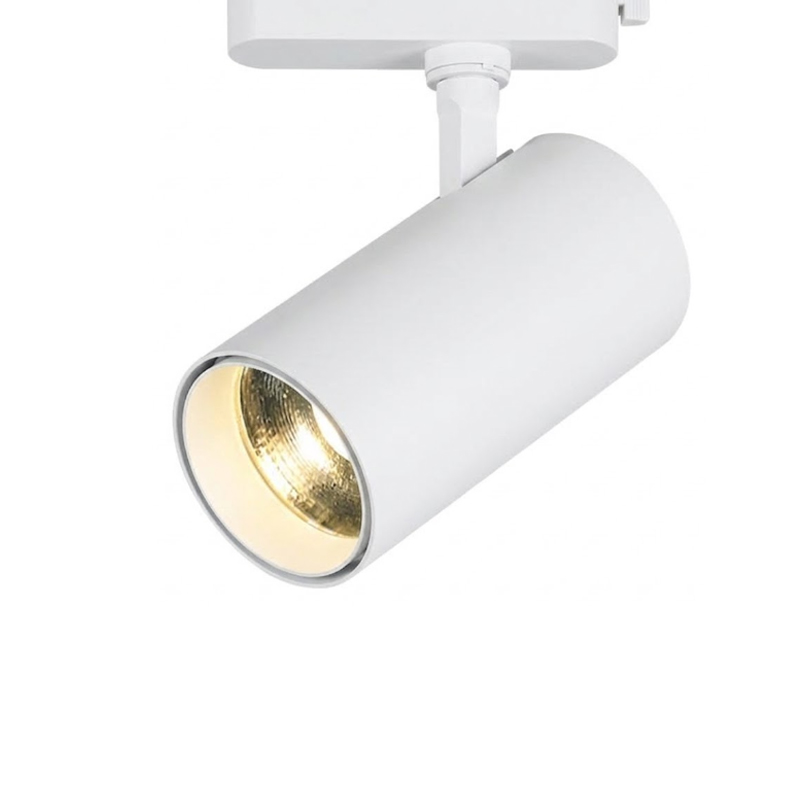

Track adjustable

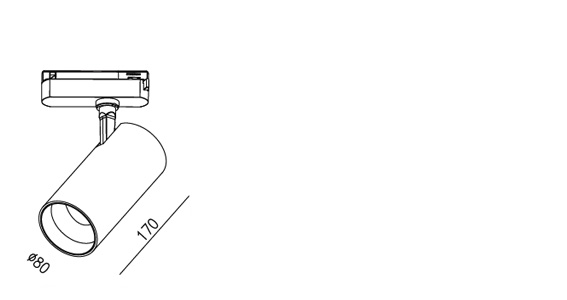

DDC-65030.22 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC or LENS
  • Dimension
    ∅ 80 x L 170 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DDC-65030.22
  • (REFLECTOR)
  • 42 W
  • 38 W
  • 36 Vdc
  • 1 050 mA
  • 15.7 ˚
  • 23.3 ˚
  • 37.6 ˚
  • 48.4 ˚
  • 69.9˚
  • 4 094 lm
  • 4 084 lm
  • 4 096 lm
  • 4 117 lm
  • 4 099 lm
 - -
  • DDC-65030.22
  • (LENS)
  • 42 W
  • 38 W
  • 36 Vdc
  • 1 050 mA
  • 19.5 ˚
  • 29.0 ˚
  • 46.3 ˚
  • 57.5 ˚
  • 3 947 lm
  • 4 155 lm
  • 4 044 lm
  • 3 523 lm
 - -
