DP-51160.07
클릭하여 확대

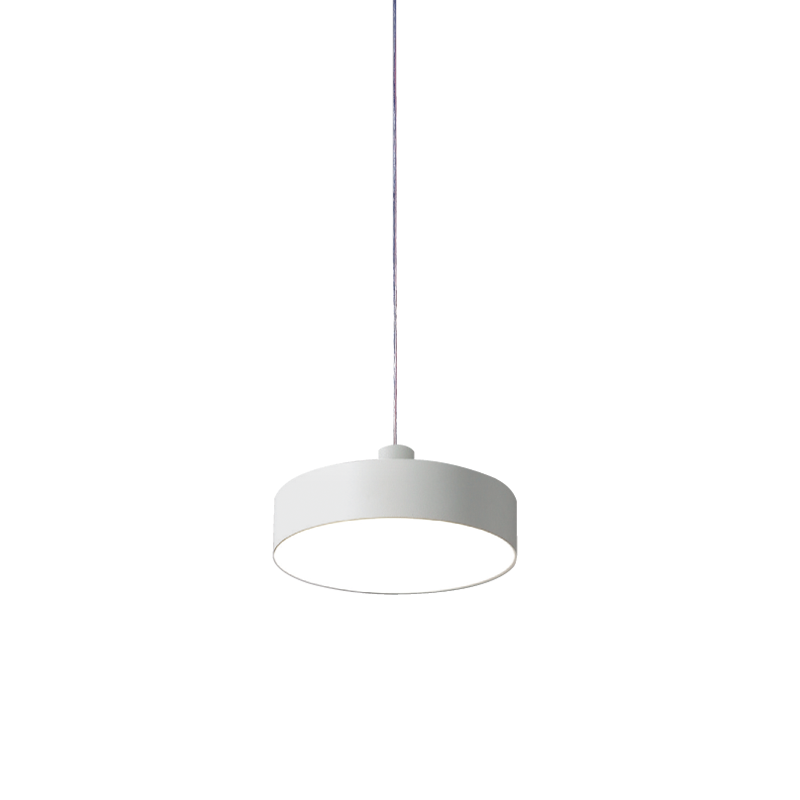

DP-51160.07

DP-51160.07

Pendant Fixed

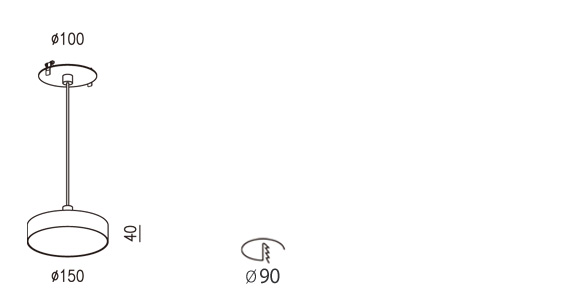

DP-51160.07 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5 000K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC Cover
  • Dimension
    ∅ 150 x H 40 mm
  • Hole Cut
    ∅ 90 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DP-51160.07
  • 21 W
  • 18 W
  • 36 Vdc
  • 500 mA
  • 107.7 ˚
  • 1 604 lm
 - -
