DP-51240.31
클릭하여 확대

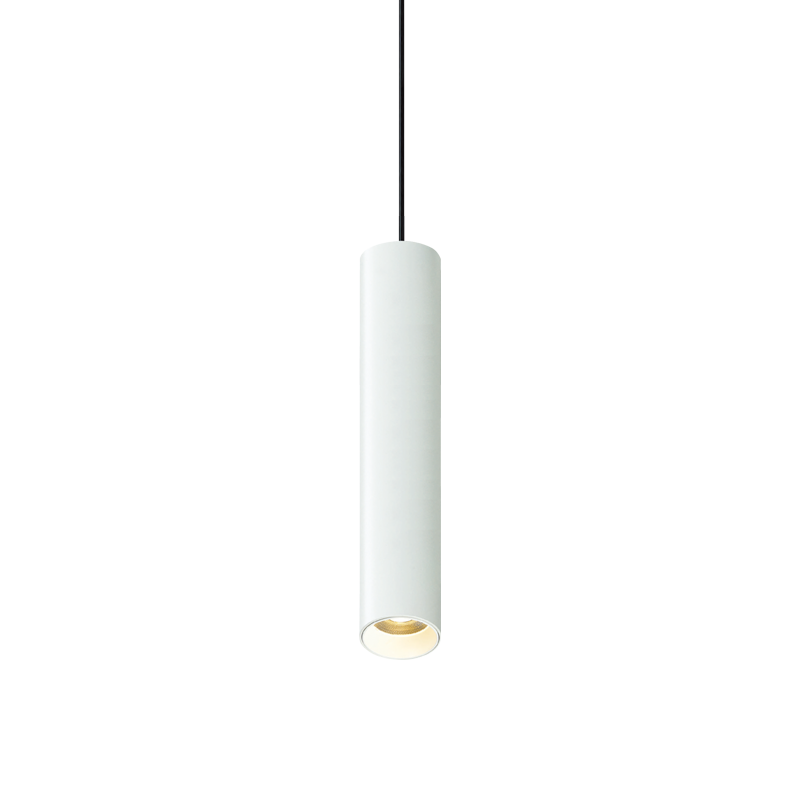

DP-51240.31

DP-51240.31

Pendant Fixed

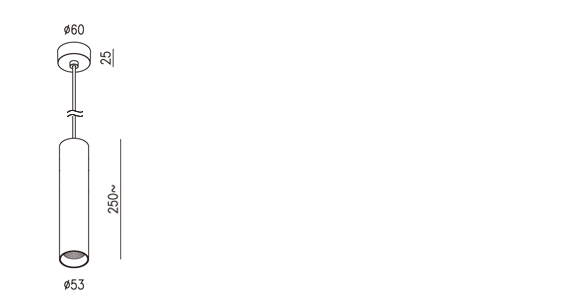

DP-51240.31 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC (Vacuum Coating) or LENS
  • Dimension
    ∅ 53 x H 250 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DP-51240.31
  • 10 W
  • 8 W
  • 32 Vdc
  • 250 mA
  • 20.8 ˚
  • 25.6 ˚
  • 37.2 ˚
  • 42.9 ˚
  • 808 lm
  • 963 lm
  • 959 lm
  • 929 lm
 - - -
