Product

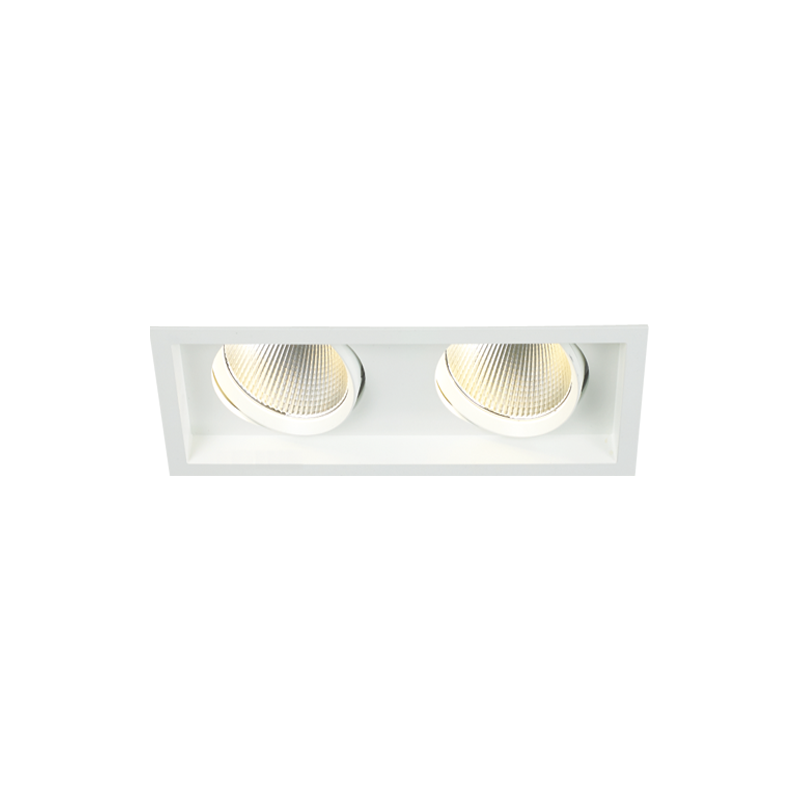

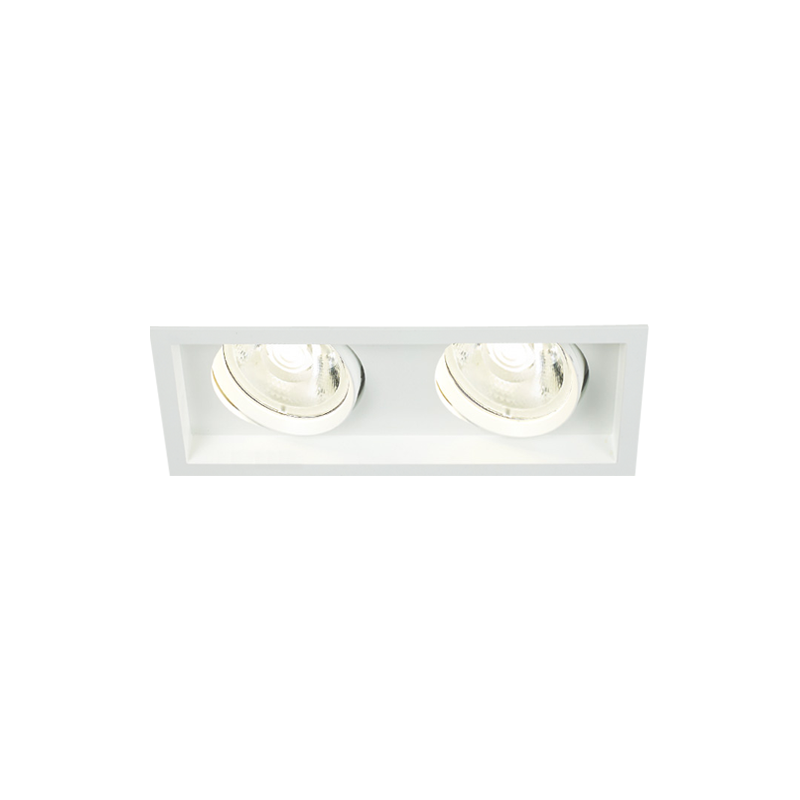

DD-37020.09
클릭하여 확대
DD-37020.09
클릭하여 확대
DD-37020.09
DD-37020.09

DD-37020.09

Recessed adjustable

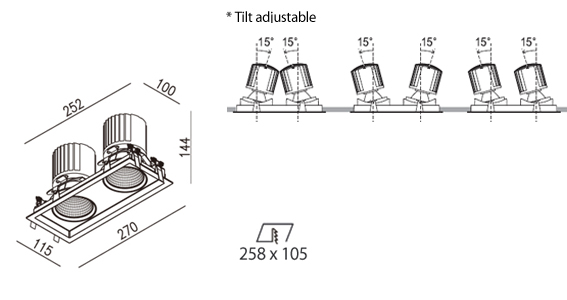

DD-37020.09 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver or LENS
  • Dimension
    270 x 115 x H 144 mm
  • Hole Cut
    258 x 105 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-37020.09 (Reflector type)
  • 20 W x 2
  •
  •
  •
 - - -
  • DD-37021.09 (Reflector type)
  • 27 W x 2
  •
  •
  •
 - - -
  • DD-37020.09 (LENS type)
  • 20 W x 2
  •
  •
 - - -
  • DD-37021.09 (LENS type)
  • 27 W x 2
  •
  •
  •
 - - -
