Product

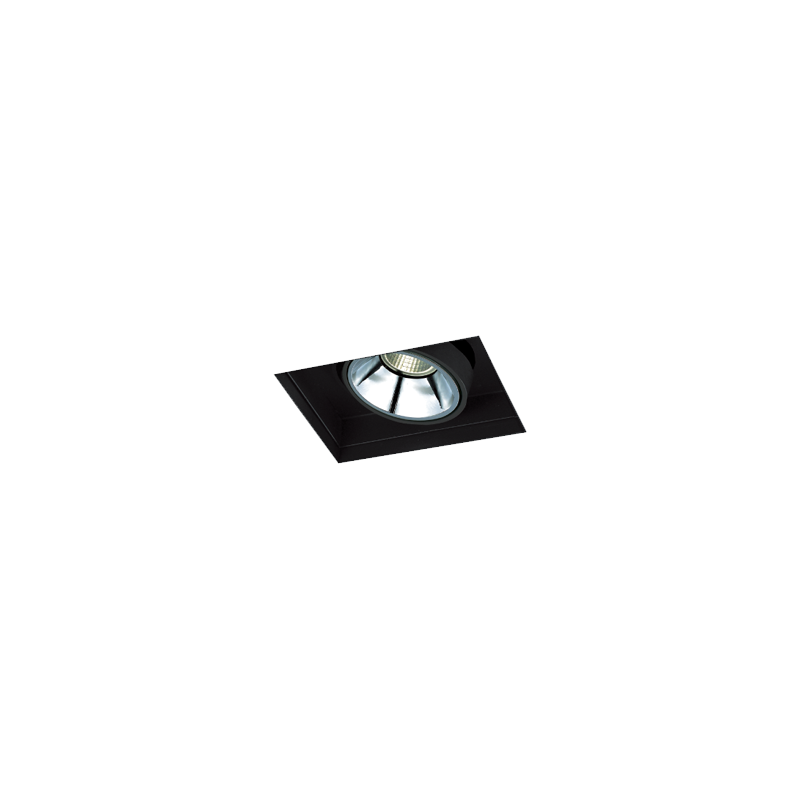

DD-37110.10-02
클릭하여 확대
DD-37110.10-02

DD-37110.10-02

Recessed adjustable

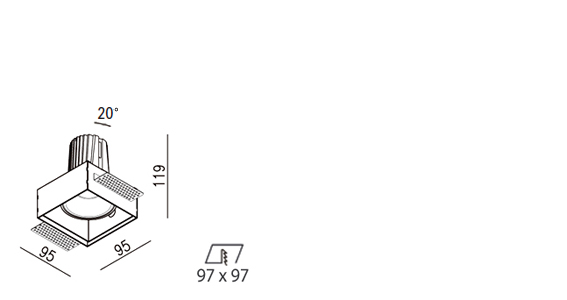

DD-37110.10-02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : PC / Outer : ABS (Chrome
  • Dimension
    95 x 95 x H 119 mm
  • Hole Cut
    97 x 97 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-37110.10-02
  • 14 W
  • 12 W
  • 32 Vdc
  • 350 mA
  • 20.6 ˚
  • 26.2 ˚
  • 37.4 ˚
  • 1 367 lm
  • 1 341 lm
  • 1 406 lm
 - -
