DD-37200.03
클릭하여 확대

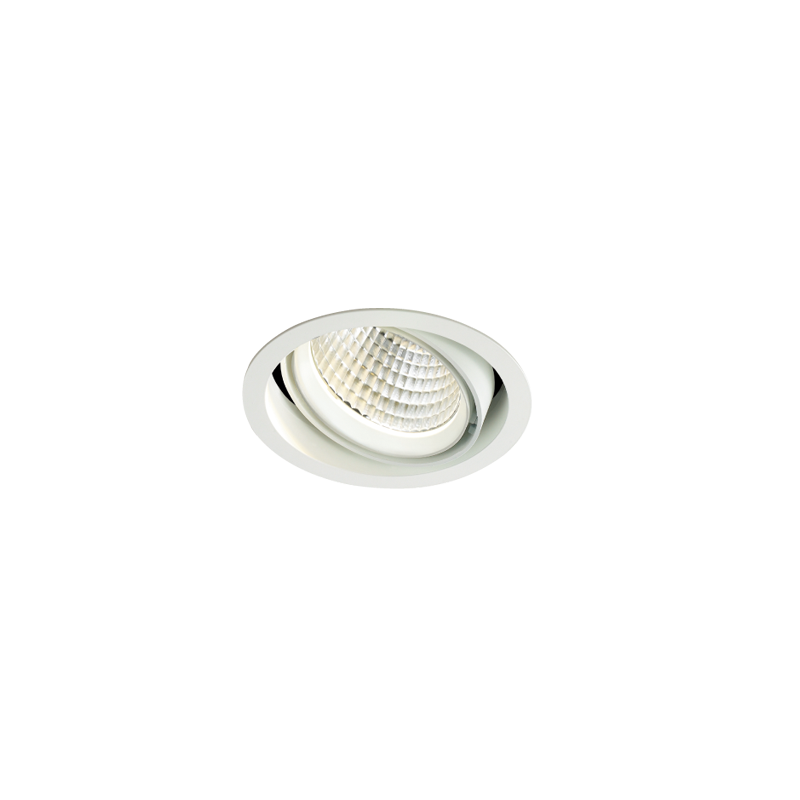

DD-37200.03

DD-37200.03

Recessed adjustable

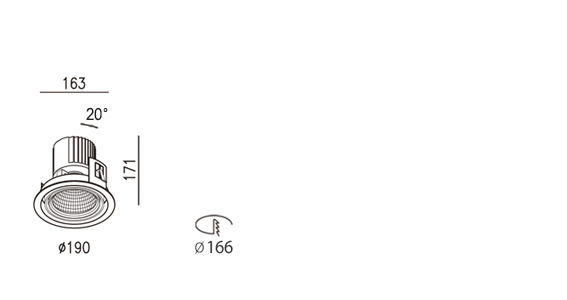

DD-37200.03 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized Specular Silver
  • Dimension
    Ø 190 x H 171 mm
  • Hole Cut
    Ø 166 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-37200.03
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 11.1 ˚
  • 23.6 ˚
  • 38.6 ˚
  • 2 016 lm
  • 2 006 lm
  • 2 000 lm
 - -
  • DD-37201.03
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 11.1 ˚
  • 23.6 ˚
  • 38.6 ˚
  • 2 699 lm
  • 2 665 lm
  • 2 668 lm
 - -
  • DD-37202.03
  • 41 W
  • 37 W
  • 36 Vdc
  • 1 050 mA
  • 11.1 ˚
  • 23.7 ˚
  • 38.6 ˚
  • 3 814 lm
  • 3 802 lm
  • 3 776 lm
 - -
