Product

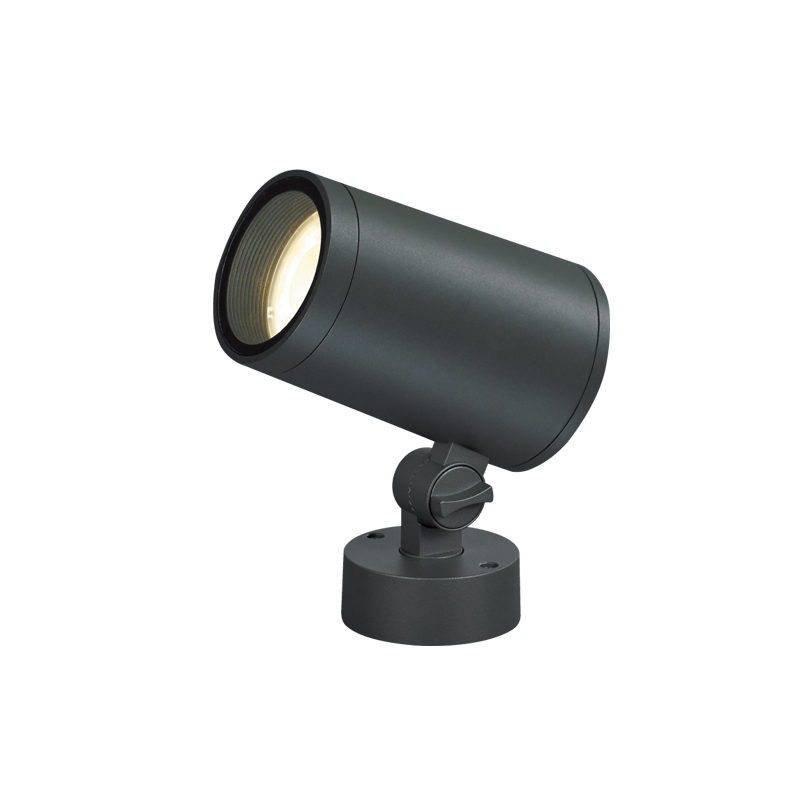

DF-48200
클릭하여 확대
DF-48200
클릭하여 확대
DF-48200
DF-48200

DF-48200

Outdoor adjustable

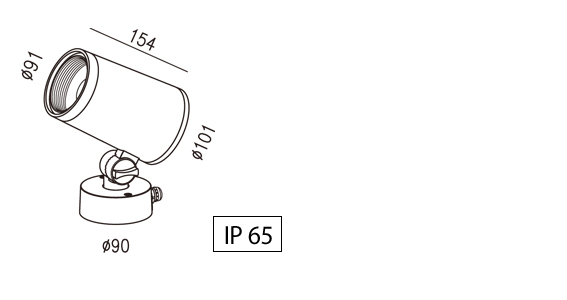

DF-48200 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    Light Gray, Black, Dark Gray
  • Reflector
    LENS

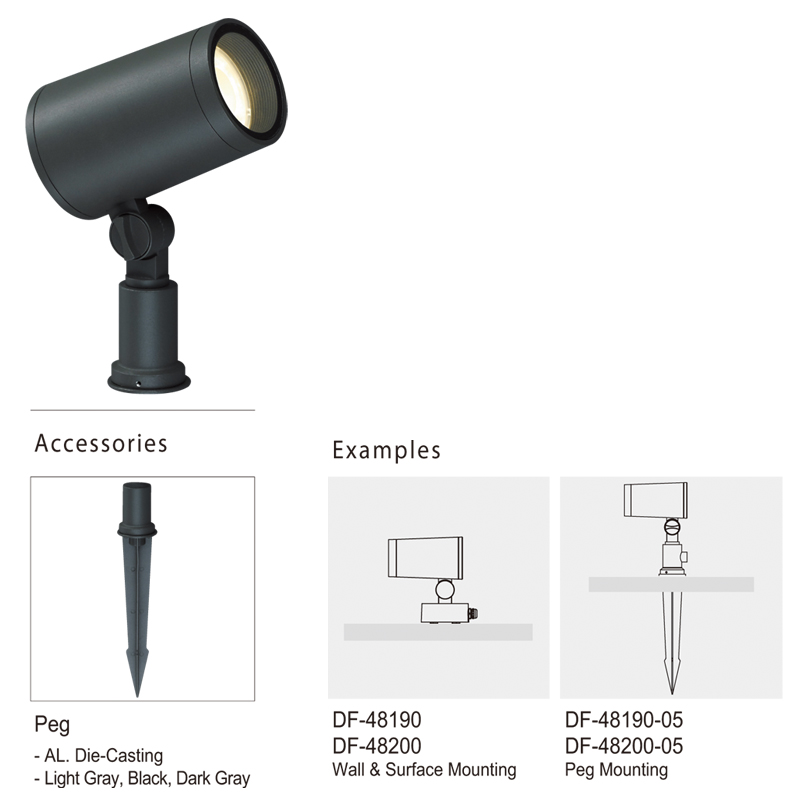

  • Accessory
    Peg
  • Dimension
    ∅ 91 x L 154 mm
  • Hole Cut

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DF-48200
  • 23 W
  • 20 W
  • 36 Vdc
  • 600 mA
  • 19.2 ˚
  • 28.9 ˚
  • 40.9 ˚
  • 55.1 ˚
  • 2 148 lm
  • 2 321 lm
  • 2 255 lm
  • 1 635 lm
 - -
  • DF-48200-05
  • 23 W
  • 20 W
  • 36 Vdc
  • 600 mA
  • 19.2 ˚
  • 28.9 ˚
  • 40.9 ˚
  • 55.1 ˚
  • 2 148 lm
  • 2 321 lm
  • 2 255 lm
  • 1 635 lm
 - - -
