Product

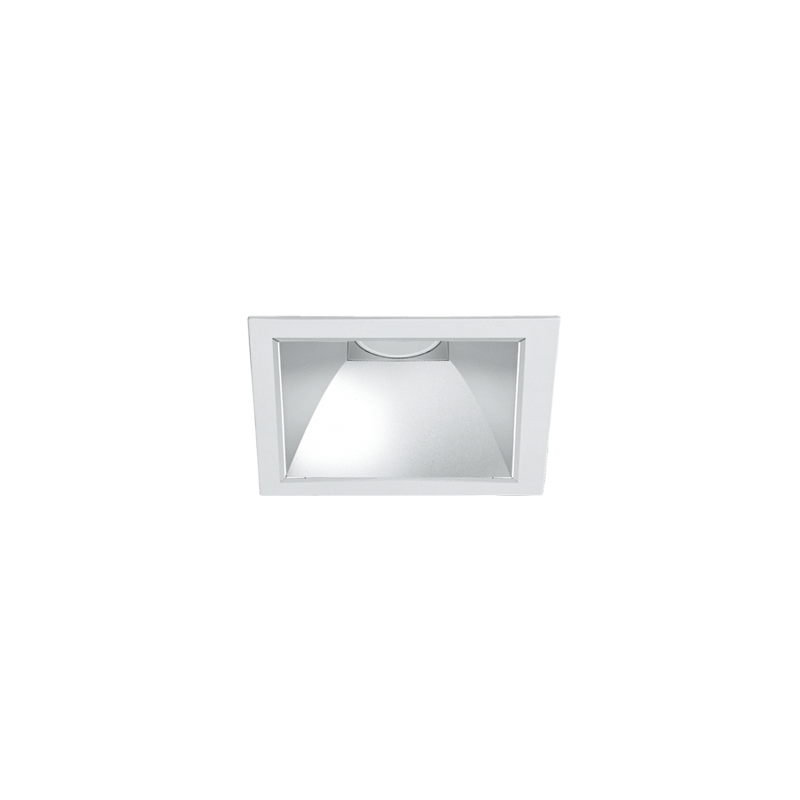

DD-20910.02
클릭하여 확대
DD-20910.02

DD-20910.02

Recessed Fixed

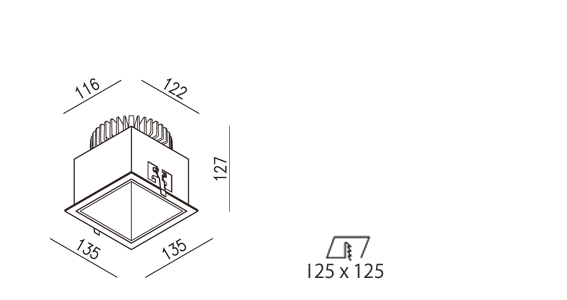

DD-20910.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5 000 K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Anodized
  • Dimension
    135 x 135 x H 127 mm
  • Hole Cut
    125 x 125 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-20910.02
  • 20 W
  • 17 W
  • 34 Vdc
  • 500 mA
  • 71.5 ˚
  • 1 543 lm
 - -
  • DD-20912.02
  • 27 W
  • 24 W
  • 34 Vdc
  • 700 mA
  • 71.3 ˚
  • 2 045 lm
 - -
