Product

DD-20920.02
클릭하여 확대
DD-20920.02

DD-20920.02

Recessed Wallwasher

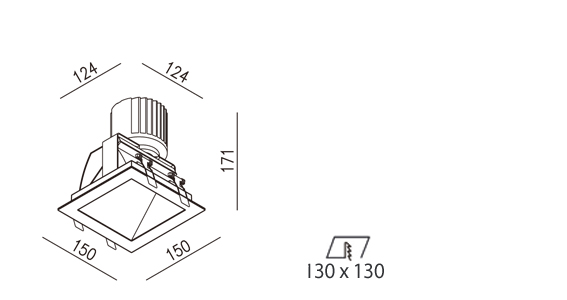

DD-20920.02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    AL. Sanding
  • Dimension
    150 x 150 x H 171 mm
  • Hole Cut
    130 x 130 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-20920.02
  • 20 W
  • 17 W
  • 36 Vdc
  • 500 mA
  • 91.0 ˚ / 88.1 ˚
  • 1 657 lm
 - -
  • DD-20921.02
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 91.0 ˚ / 88.2 ˚
  • 2 217 lm
 - -
