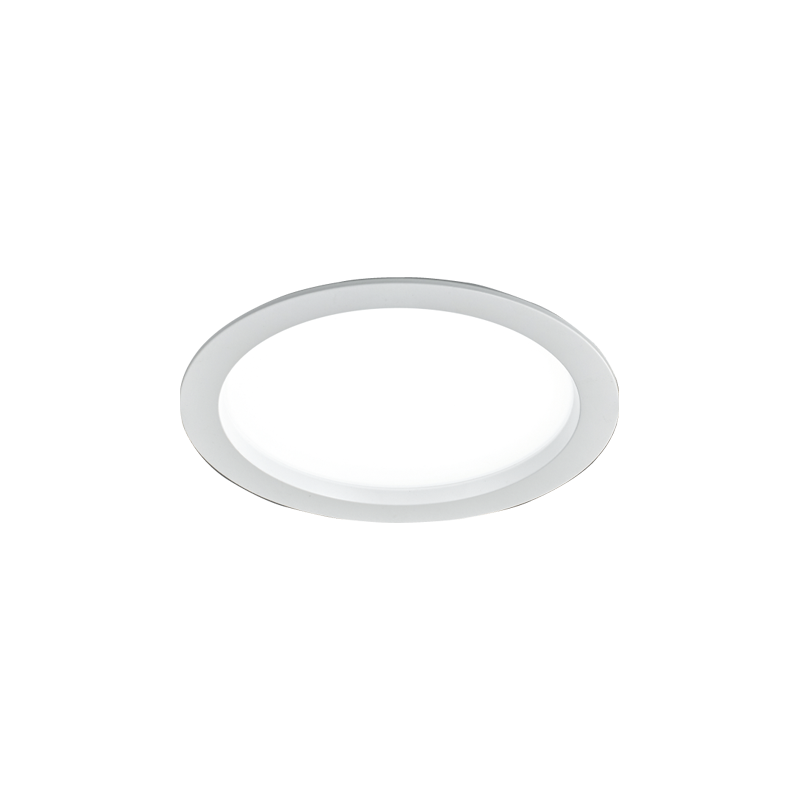

DD-20650.03
클릭하여 확대
DD-20650.03

DD-20650.03

Recessed Fixed

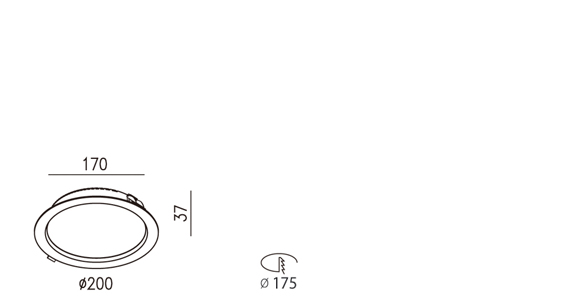

DD-20650.03 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    5700K / 5 000 K / 4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    PC Cover
  • Dimension
    ∅ 200 x H 37 mm
  • Hole Cut
    ∅ 175 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-20650.03
  • 24 W
  • 21 W
  • 36 Vdc
  • 600 mA
  • 88.3 ˚
  • 2 282 lm
 - -
  • DD-20651.03
  • 27 W
  • 25 W
  • 36 Vdc
  • 700 mA
  • 88.3 ˚
  • 2 619 lm
 - -
