Product

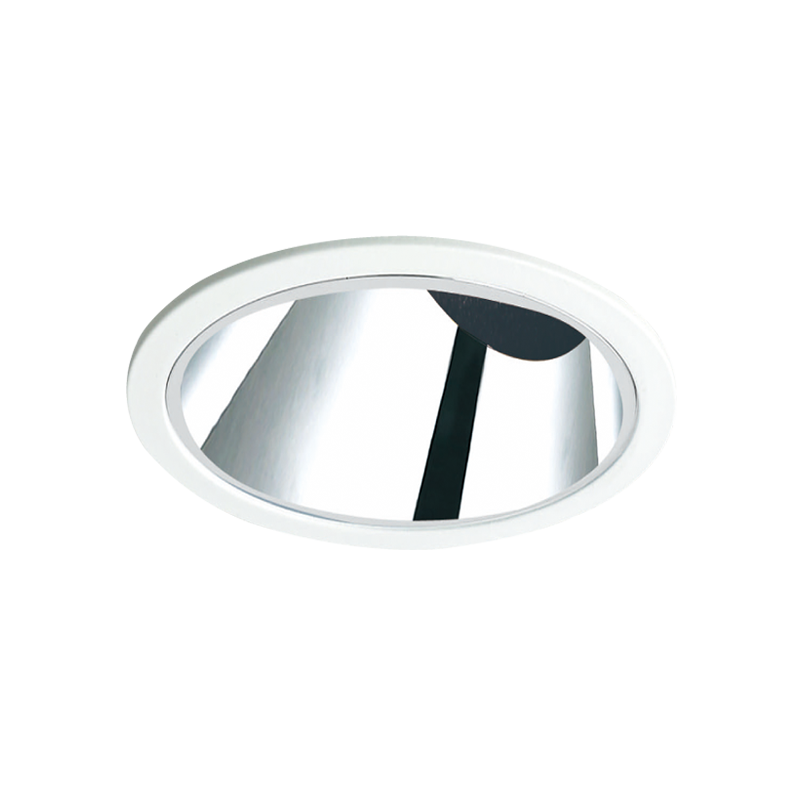

DD-26540.04
클릭하여 확대
DD-26540.04

DD-26540.04

Recessed adjustable

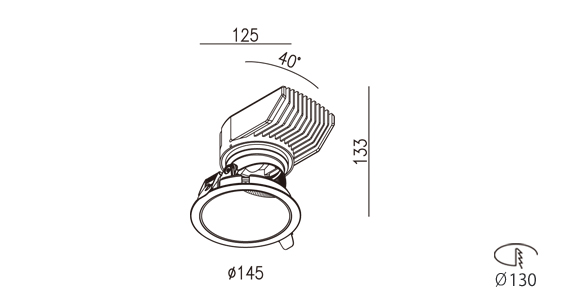

DD-26540.04 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    INNER : PC / OUTER : ABS (Chrome)
  • Dimension
    ∅ 145 x H 133 mm
  • Hole Cut
    ∅ 130 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26540.04
  • 33 W
  • 28 W
  • 36 Vdc
  • 800 mA
  • 16.8 ˚/ 18.6 ˚
  • 22.8 ˚/ 23.7 ˚
  • 32.1 ˚/ 33.8 ˚
  • 2 871 lm
  • 2 804 lm
  • 2 556 lm
 - -
