Product

DD-26520
클릭하여 확대

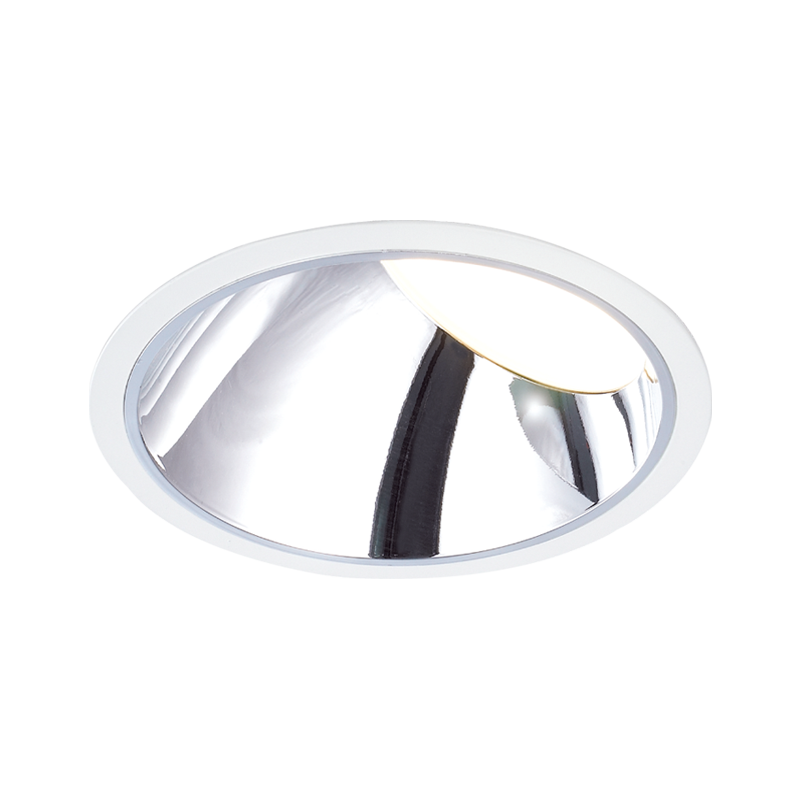

DD-26520

DD-26520

Recessed Fixed

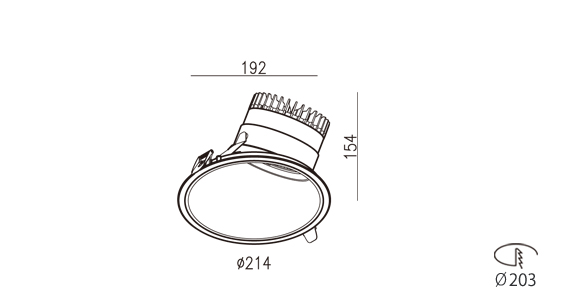

DD-26520 도면

PRODUCT SPECIFICATION

  • Type of LED
    SMD
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized / Outer : ABS (Chrome)
  • Dimension
    ∅ 214 x H 154 mm
  • Hole Cut
    ∅ 203 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26520
  • 28 W
  • 24 W
  • 35 Vdc
  • 700 mA
  • 44.3 ˚/ 49.7 ˚
  • 2 064 lm
 - -
