Product

DD-26530.01
클릭하여 확대

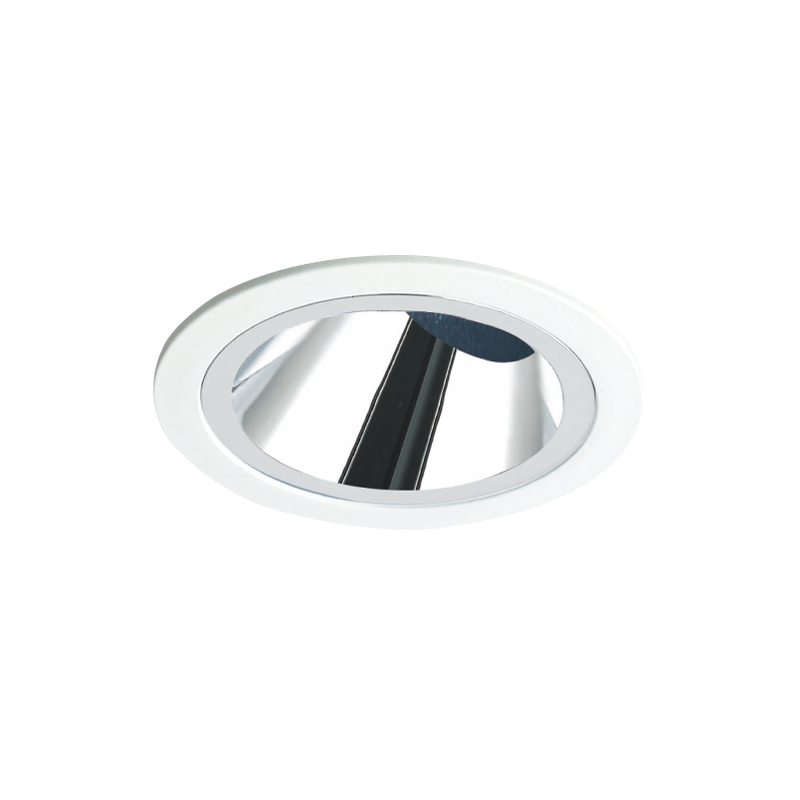

DD-26530.01

DD-26530.01

Recessed adjustable

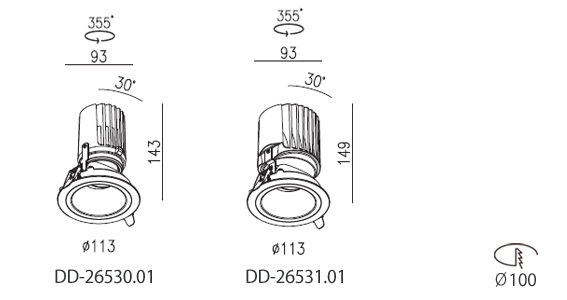

DD-26530.01 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized / Outer : ABS (Chrome)
  • Dimension
    ∅ 113 x H 149 mm
  • Hole Cut
    ∅ 100 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26530.01
  • 18 W
  • 16 W
  • 36 Vdc
  • 450 mA
  • 14.6 ˚/ 16.0 ˚
  • 23.2 ˚/ 22.8 ˚
  • 33.4 ˚/ 33.5 ˚
  • 1 266 lm
  • 1 039 lm
  • 1 420 lm
 - -
  • DD-26531.01
  • 28 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 16.8 ˚/ 16.6 ˚
  • 26.2 ˚/ 24.9 ˚
  • 37.3 ˚/ 32.3 ˚
  • 1 726 lm
  • 1 644 lm
  • 1 693 lm
 - -
