DD-26530.08-02
클릭하여 확대

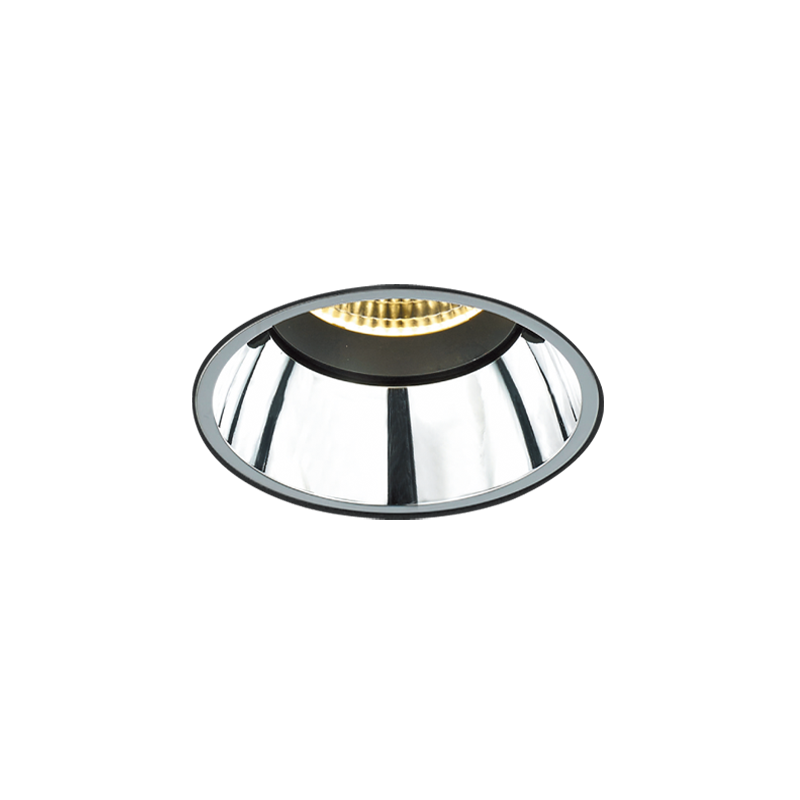

DD-26530.08-02

DD-26530.08-02

Recessed adjustable

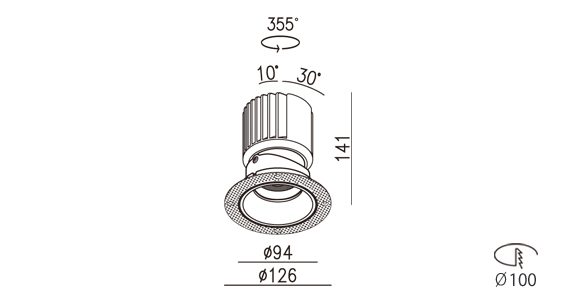

DD-26530.08-02 도면

PRODUCT SPECIFICATION

  • Type of LED
    COB
  • Input Voltage
    220-240V AC , 50-60Hz (option : 100-240V AC , 50-60Hz)
  • CRI
    80, 90
  • Color Temperature
    4 000 K / 3 000 K
  • SDCM
    3
  • Life time
    50 000 hours at 25 ℃
  • Material
    Powder Coated Aluminium
  • Finished
    White, Black
  • Reflector
    Inner : AL. Anodized / Outer : ABS (Chrome)
  • Accessory
  • Dimension
    ∅ 94 x H 141 mm
  • Hole Cut
    ∅ 100 mm

PRODUCT DATA DOWNLOAD

PRODUCT DATA DOWNLOAD
ORDER
NUMBER		 INPUT
POWER		 OUTPUT
POWER		 OUTPUT
VOLTAGE		 OUTPUT
CURRENT		 BEAM
ANGLE		 LUMINOUS
FLUX
SPEC
IES
CATALOGUE
INSTALLATION
  • DD-26530.08-02
  • 27 W
  • 24 W
  • 36 Vdc
  • 700 mA
  • 15.6 ˚
  • 28.3 ˚
  • 37.3 ˚
  • 49.4 ˚
  • 2 290 lm
  • 3 158 lm
  • 3 426 lm
  • 3 023 lm
 - -
  • DD-26531.08-02
  • 37 W
  • 32 W
  • 36 Vdc
  • 900 mA
  • 19.3 ˚
  • 28.3 ˚
  • 37.4 ˚
  • 49.3 ˚
  • 2 893 lm
  • 4 044 lm
  • 4 329 lm
  • 3 872 lm
 - -
  • DD-26532.08-02
  • 43 W
  • 37 W
  • 36 Vdc
  • 1 050 mA
  • 19.3 ˚
  • 28.3 ˚
  • 37.5 ˚
  • 49.3 ˚
  • 3 244 lm
  • 4 551 lm
  • 4 764 lm
  • 4 372 lm
 - -
