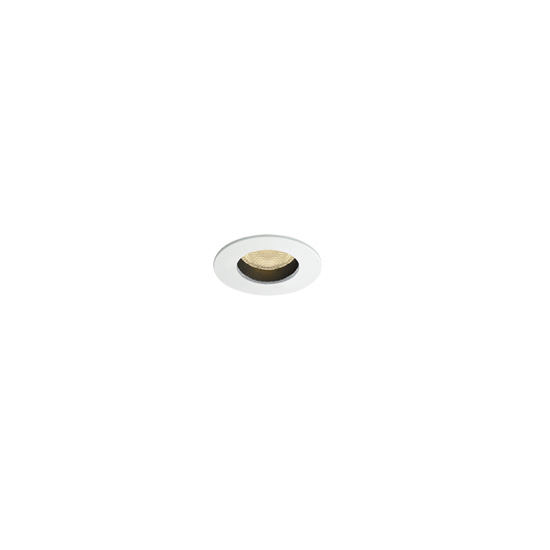

DD-11000.02
· Color : White, Black
| TRIM | AL. Die-Casting, Electrostatic Powder Coating |
|---|---|
| HEAT SINK | AL. Die-Casting, Electrostatic Powder Coating |
| REFLECTOR | LENS |
| TYPE OF LED | POWER LED |
| INPUT VOLTAGE | 220-240 Vac, 50/60 Hz (option : 110-277 Vac , 50/60 Hz) |
| INPUT POWER | DD-11000.02 : 3 W DD-11001.02 : 7 W |
| OUTPUT POWER | DD-11000.02 : 2 W DD-11001.02 : 6 W |
| LUMINOUS FLUX | [3 000 K] DD-11000.02 135 lm (11.4 ˚) / 137 lm (15.8 ˚) / 139 lm (26.5 ˚) 137 lm (36.2 ˚) / 126 lm (40.9 ˚) DD-11001.02 346 lm (13.3 ˚) / 352 lm (17.2 ˚) / 354 lm (26.2 ˚) 351 lm (35.3 ˚) / 332 lm (42.5 ˚) |
| OUTPUT VOLTAGE | DD-11000.02 : 3 Vdc DD-11001.02 : 12 Vdc |
| OUTPUT CURRENT | DD-11000.02 : 700 mA DD-11001.02 : 500 mA |
| OPERATING TEMPERATURE RANGE | -20 to + 55 ℃ |
| MAINTENANCE OF LUMEN - L80 | 50 000 hours at 25 ℃ |
| COLOR RENDERING INDEX | 80 l 90 |
| COLOR TEMPERATURE | 5 000 K l 4 000 K l 3 000 K |
DATA DOWNLOAD
| ORDER NUMBER | TYPE OF LED | DWG | IES | CATALOGUE |
|---|---|---|---|---|
| DD-11000.02 | POWER LED 4W |
