50년간의 노하우를 가진 최고의 조명기구제조 회사 ‘동명전기’

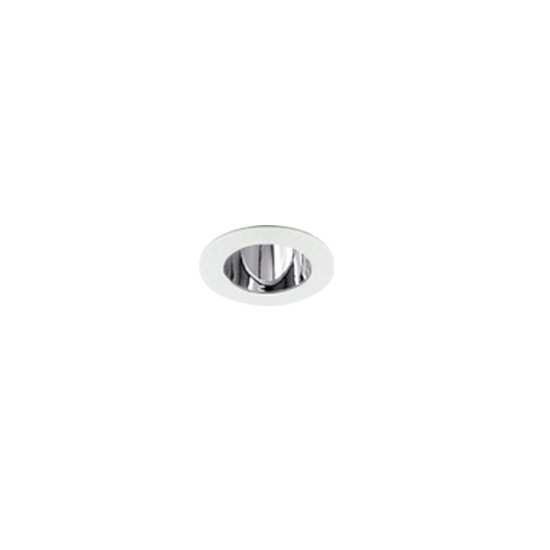

DD-11020.02
· Color : White, Black
| TRIM | AL. Die-casting |
|---|---|
| HEAT SINK | AL. Extrude, Electrostatic Powder Coating |
| REFLECTOR | INNER - LENS OUTER - ABS (Chrome) |
| TYPE OF LED | COB TYPE |
| INPUT VOLTAGE | 220-240 Vac, 50/60 Hz (option : 110-277 Vac , 50/60 Hz) |
| INPUT POWER | 9 W |
| OUTPUT POWER | 7 W |
| LUMINOUS FLUX | [3 000 K] 446 lm (30.5 ˚) |
| OUTPUT VOLTAGE | 36 Vdc |
| OUTPUT CURRENT | 200 mA |
| OPERATING TEMPERATURE RANGE | -20 to + 55 ℃ |
| MAINTENANCE OF LUMEN - L80 | 50 000 hours at 25 ℃ |
| COLOR RENDERING INDEX | 80 l 90 |
| COLOR TEMPERATURE | 4 000 K l 3 000 K |
DATA DOWNLOAD
| ORDER NUMBER | TYPE OF LED | DWG | IES | CATALOGUE |
|---|---|---|---|---|
| DD-11020.02 | COB 9W |
